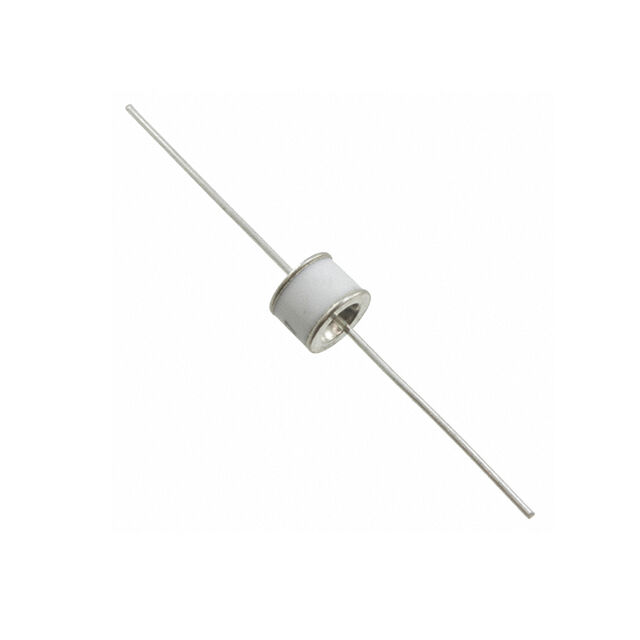

2049-12-BT1LF

Active

Bourns Inc.

GDT 120V 15KA 2 POLE TH

Search across all available documentation for this part.

Active

Bourns Inc.

GDT 120V 15KA 2 POLE TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2049-12-BT1LF	2049 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	15000 A	15000 A
Impulse Discharge Current (8/20µs)	15 kA	15 kA
Mounting Type	Through Hole	Through Hole
Number of Poles	2	2
Package / Case	Axial Cylinder	Axial Cylinder
Tolerance	30 %	30 %
Voltage - DC Spark Over (Nom)	-	75 - 600 V

GDT 130V 15KA 2 POLE TH

Part	Number of Poles	Package / Case	Voltage - DC Spark Over (Nom)	Mounting Type	Tolerance	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)
Bourns Inc. 2049-13-BLF	2	Axial Cylinder	130 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-30-BT1LF	2	Axial Cylinder	300 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-60-BT1LF	2	Axial Cylinder	600 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-35-BLF	2	Axial Cylinder	350 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-25-BLF	2	Axial Cylinder	250 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-12-BT1LF	2	Axial Cylinder		Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-09-BT1LF	2	Axial Cylinder	90 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-14-BLF	2	Axial Cylinder	145 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-23-BT1LF	2	Axial Cylinder	230 V	Through Hole	30 %	15000 A	15 kA
Bourns Inc. 2049-25-BT1LF	2	Axial Cylinder	250 V	Through Hole	30 %	15000 A	15 kA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 120 V 15000A (15kA) ±30% 2 Pole Through Hole
