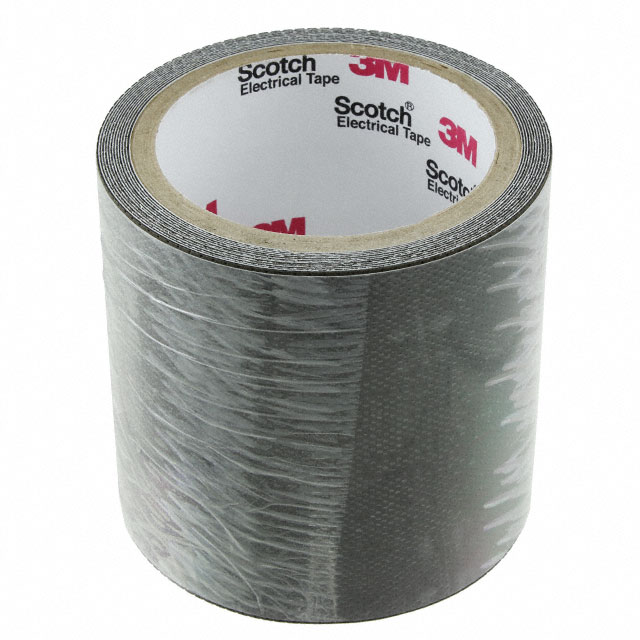

ECG7033H-100MMX3M

Active

TAPE CONDUCT ADHSV 3.94"X3.3YD

Search across all available documentation for this part.

Active

TAPE CONDUCT ADHSV 3.94"X3.3YD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Conductive Adhesive Tape Acrylic Adhesive 3.94" (100.00mm) X 10' (3.0m) 3.3 yds

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ECG7033H-100MMX3M	ECG70 Series

Adhesive	Acrylic	Acrylic
Backing, Carrier	Polyurethane Foam	Polyurethane Foam
Length	10 ft	10 - 164 ft
Length	3.3 yds	3.3 - 54.7 yds
Length	3 m	3 - 50 m
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature	23 °C	23 °C
Storage/Refrigeration Temperature	73.4 °F	73.4 °F
Tape Type	Conductive Adhesive	Conductive Adhesive
Thickness	0.32 mm	0.32 mm
Thickness	0.0126 in	0.0126 in
Thickness	12.6 mils	12.6 mils
Thickness - Adhesive	-	0.32 - 0.52 mm
Thickness - Adhesive	-	0.0126 - 0.0204 in
Thickness - Adhesive	-	12.6 - 20.5 mils
Usage	Electrically Conductive	Electrically Conductive
Width [y]	3.94 in	3.94 in
Width [y]	100 mm	100 mm

TAPE CONDUCT ADHSV 3.94"X3.3YD

Part	Usage	Thickness	Thickness	Thickness	Tape Type	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life	Length	Length	Length	Width [y]	Width [y]	Backing, Carrier	Shelf Life Start	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive
3M ECG7033H-100MMX3M	Electrically Conductive	0.32 mm	0.0126 in	12.6 mils	Conductive Adhesive	23 °C	73.4 °F	12 Months	10 ft	3.3 yds	3 m	3.94 in	100 mm	Polyurethane Foam	Date of Manufacture	Acrylic
3M ECG7033H	Electrically Conductive				Conductive Adhesive	23 °C	73.4 °F	12 Months	164 ft	54.7 yds	50 m			Polyurethane Foam	Date of Manufacture	Acrylic	0.32 mm	0.0126 in	12.6 mils
3M ECG7053H	Electrically Conductive				Conductive Adhesive	23 °C	73.4 °F	12 Months	164 ft	54.7 yds	50 m			Polyurethane Foam	Date of Manufacture	Acrylic	0.52 mm	0.0204 in	20.5 mils
