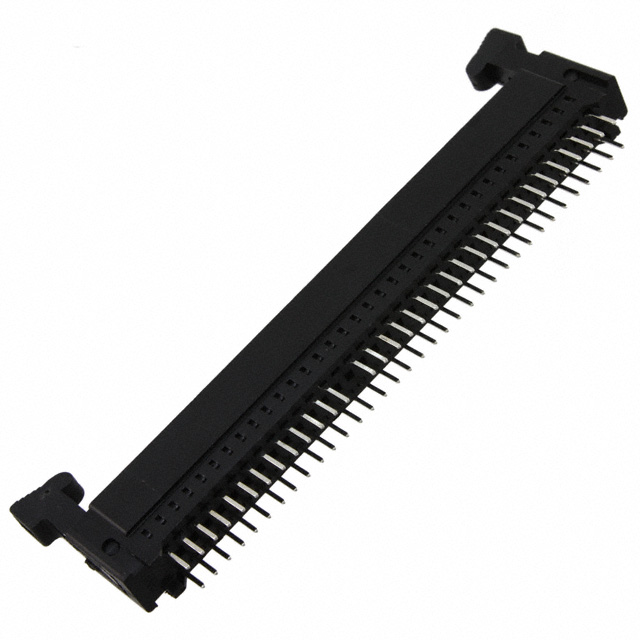

2-145459-5
ObsoleteTE Connectivity Raychem Cable Protection
CONN EDGE DUAL FML 70POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2-145459-5
ObsoleteTE Connectivity Raychem Cable Protection
CONN EDGE DUAL FML 70POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-145459-5 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Features | Latches |
| Gender | Female |
| Material - Insulation | Polyester, Glass Filled |
| Mounting Type | Through Hole |
| Number of Positions | 70, 69 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
145459 Series
70 (69 Loaded) Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
