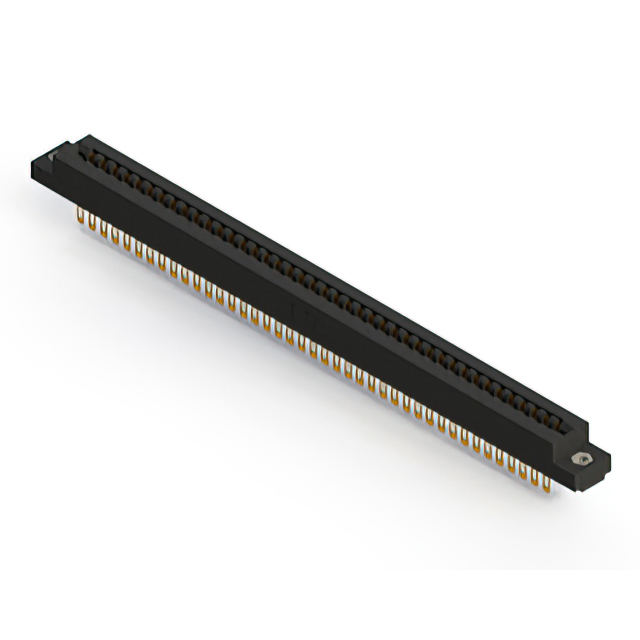

857-082-500-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 82POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-082-500-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 82POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-082-500-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	2

857-082 Series

...

Part	Number of Rows	Card Type	Gender	Contact Material	Mounting Type	Termination	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Number of Positions	Contact Type	Color	Termination Rows	Pitch [x]	Pitch [x]	Features	Flange Feature	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 857-082-500-201	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole	Solder Eyelet(s)	10 Áin	0.25 Ám	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm
EDAC Inc. 857-082-455-212	2	Non Specified - Dual Edge	Female	Copper Alloy	Board Edge Straddle Mount	Solder			Dual	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm	Card Extender	Side Mount Opening Unthreaded	3.25 mm	0.128 in
EDAC Inc. 857-082-422-204	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole	Solder			Dual	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm		Flush Mount Top Opening Unthreaded			3.96 mm	0.156 in
EDAC Inc. 857-082-500-207	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole	Solder Eyelet(s)	10 Áin	0.25 Ám	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-082-458-204	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole Right Angle	Solder			Single	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm		Flush Mount Top Opening Unthreaded			3.96 mm	0.156 in
EDAC Inc. 857-082-420-204	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole	Solder			Dual	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm		Flush Mount Top Opening Unthreaded			3.96 mm	0.156 in
EDAC Inc. 857-082-555-207	2	Non Specified - Dual Edge	Female	Copper Alloy	Board Edge Straddle Mount	Solder	10 Áin	0.25 Ám	Dual	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm	Card Extender	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 857-082-420-202	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole	Solder			Dual	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm		Flush Mount Top Opening Unthreaded			3.25 mm	0.128 "
EDAC Inc. 857-082-420-208	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole	Solder			Dual	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 857-082-459-212	2	Non Specified - Dual Edge	Female	Copper Alloy	Through Hole Right Angle	Solder			Single	Tin	1.37 mm	0.054 "	1.78 mm	0.07 in	125 °C	-40 °C	Polyphenylene Sulfide (PPS)	82	Semi Bellows	Black	2	0.156 in	3.96 mm		Side Mount Opening Unthreaded	3.25 mm	0.128 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 107.44
Newark	Each	1	$ 156.27
		100	$ 92.45
		250	$ 83.18
		500	$ 73.64
		1000	$ 59.25

Description

General part information

857-082 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
