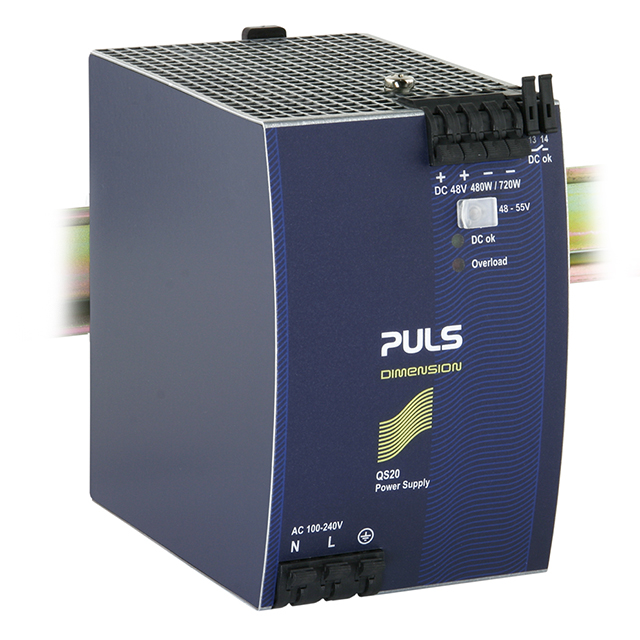

QS20.481

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 480W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QS20.481

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 48V 480W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 670.50

Description

General part information

QS20 Series

AC/DC DIN RAIL SUPPLY 48V 480W

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QS20.481	QS20 Series

AC Voltage - Input [Max]	276 VAC	276 VAC
AC Voltage - Input [Min]	85 VAC	85 VAC
Applications	ITE (Commercial), Hazardous Locations	ITE (Commercial), Hazardous Locations
Approval Agency	CSA, EAC, ABS, DNV GL, IEC, UL	CSA, EAC, ABS, DNV GL, IEC, UL, SEMI, IECEx, ATEX
Current - Output (Max) [Max]	10 A	10 - 20 A
DC Voltage - Input (Max) [Max]	187 V	187 V
DC Voltage - Input (Min) [Min]	88 V	88 V
Efficiency	94.3 %	93.9 - 94.5 %
Features	PFC, Adjustable Output, Load Sharing	Adjustable Output, Load Sharing, PFC, Conformal Coating
Input Type	AC or DC	AC, AC or DC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	480 W	480 W
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [x]	5 in	5 in
Size / Dimension [y]	3.23 "	3.23 "
Size / Dimension [y]	82 mm	82 mm
Size / Dimension [z]	4.88 "	4.88 "
Size / Dimension [z]	124 mm	124 mm
Standard Number	61010-2-201, 60950-1, 508, Class I Div 2	61010-2-201, 60950-1, 508, Class I Div 2, F47
Voltage - Isolation	500 V	500 V
Voltage - Output 1	48 V	24 - 48 V

QS20 Series

AC/DC DIN RAIL SUPPLY 24V 480W

Part	Number of Outputs	Current - Output (Max) [Max]	Voltage - Isolation	Standard Number	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Approval Agency	Input Type	Operating Temperature [Min]	Operating Temperature [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Features	Efficiency	Voltage - Output 1	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]
PULS, LP QS20.244	1	20 A	500 V	508, 60950-1, 61010-2-201, Class I Div 2	Hazardous Locations, ITE (Commercial)	3.23 "	82 mm	127 mm	4.88 "	5 in	124 mm	480 W	ABS, CSA, DNV GL, EAC, IEC, UL	AC	-10 °C	70 °C	276 VAC	85 VAC	Adjustable Output, Load Sharing	94.5 %	24 V
PULS, LP QS20.241-A1	1	20 A	500 V	508, 60950-1, 61010-2-201, Class I Div 2, F47	Hazardous Locations, ITE (Commercial)	3.23 "	82 mm	127 mm	4.88 "	5 in	124 mm	480 W	ABS, ATEX, CSA, DNV GL, EAC, IEC, IECEx, SEMI, UL	AC	-10 °C	70 °C	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	93.9 %	24 V
PULS, LP QS20.241	1	20 A	500 V	508, 60950-1, 61010-2-201, Class I Div 2, F47	ITE (Commercial)	3.23 "	82 mm	127 mm	4.88 "	5 in	124 mm	480 W	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	AC	-10 °C	70 °C	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	93.9 %	24 V
PULS, LP QS20.361	1	13.3 A	500 V	508, 60950-1, 61010-2-201, Class I Div 2	Hazardous Locations, ITE (Commercial)	3.23 "	82 mm	127 mm	4.88 "	5 in	124 mm	480 W	ABS, CSA, DNV GL, EAC, IEC, UL	AC	-10 °C	70 °C	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	94 %	36 V
PULS, LP QS20.481	1	10 A	500 V	508, 60950-1, 61010-2-201, Class I Div 2	Hazardous Locations, ITE (Commercial)	3.23 "	82 mm	127 mm	4.88 "	5 in	124 mm	480 W	ABS, CSA, DNV GL, EAC, IEC, UL	AC or DC	-10 °C	70 °C	276 VAC	85 VAC	Adjustable Output, Load Sharing, PFC	94.3 %	48 V	88 V	187 V
PULS, LP QS20.241-C1	1	20 A	500 V	508, 60950-1, 61010-2-201, Class I Div 2, F47	ITE (Commercial)	3.23 "	82 mm	127 mm	4.88 "	5 in	124 mm	480 W	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	AC	-10 °C	70 °C	276 VAC	85 VAC	Adjustable Output, Conformal Coating, Load Sharing, PFC	93.9 %	24 V
