Q-1T04T0003009i

Active

Amphenol Custom Cable

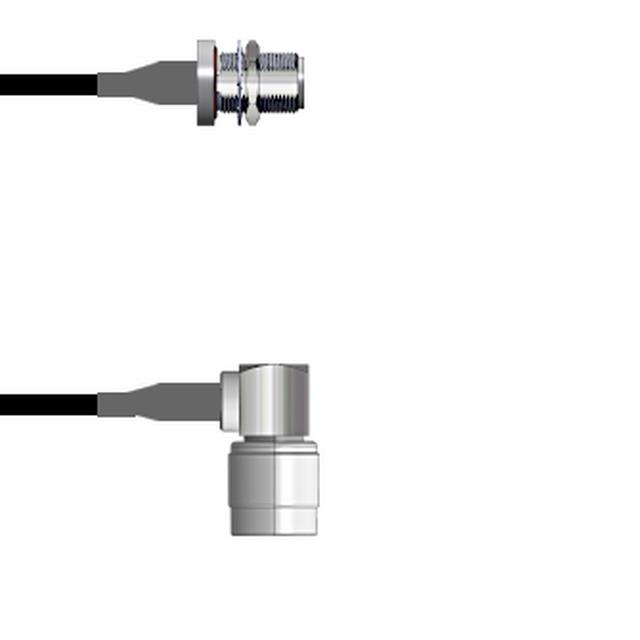

CBL ASSY NTYPE-TNC JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1T04T0003009i

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1T04T0003009i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	9 "
Length	228.6 mm
Overall Impedance	50 Ohms

Q-1T04T0 Series

Part	2nd Connector Mounting Type	1st Connector Mounting Feature	Features	1st Connector	2nd Connector	Overall Impedance	2nd Contact Gender	Frequency - Max [Max]	1st Connector Mounting Type	Cable Type	Color	Length	Length	Length	1st Contact Gender
Amphenol Custom Cable Q-1T04T00032.5M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-174	Black	8.2 '	98.4 in	2.5 m	Female
Amphenol Custom Cable Q-1T04T0003009i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-174	Black		9 "	228.6 mm	Female
Amphenol Custom Cable Q-1T04T0003003i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-174	Black		3 in	76.2 mm	Female
Amphenol Custom Cable Q-1T04T0005001M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-316	Copper	3.3 ft	39.4 in	1 m	Female
Amphenol Custom Cable Q-1T04T00050.5M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-316	Copper		19.69 "	50 cm	Female
Amphenol Custom Cable Q-1T04T0003024i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-174	Black		24 "	609.6 mm	Female
Amphenol Custom Cable Q-1T04T0003072i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-174	Black	6 ft	72 in	1.8 m	Female
Amphenol Custom Cable Q-1T04T00030.5M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-174	Black		19.69 "	50 cm	Female
Amphenol Custom Cable Q-1T04T0005024i	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-316	Copper		24 "	609.6 mm	Female
Amphenol Custom Cable Q-1T04T0003001M	Free Hanging (In-Line)	Bulkhead - Front Side Nut	Shielded	N-Type Jack	TNC Plug Right Angle	50 Ohms	Male	11 GHz	Panel Mount	RG-174	Black	3.3 ft	39.4 in	1 m	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 64.77
		25	$ 63.53
		50	$ 62.28
		100	$ 61.04
		250	$ 59.80

Description

General part information

Q-1T04T0 Series

Cable Assembly Coaxial N-Type to TNC RG-174 9.000" (228.60mm)

Documents

Technical documentation and resources

No documents available
