H7MFH-1510M

Active

Assmann WSW Components

CBL D-SUB-HHMP15H/AE15M/HHFP15H

Search across all available documentation for this part.

Active

Assmann WSW Components

CBL D-SUB-HHMP15H/AE15M/HHFP15H

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

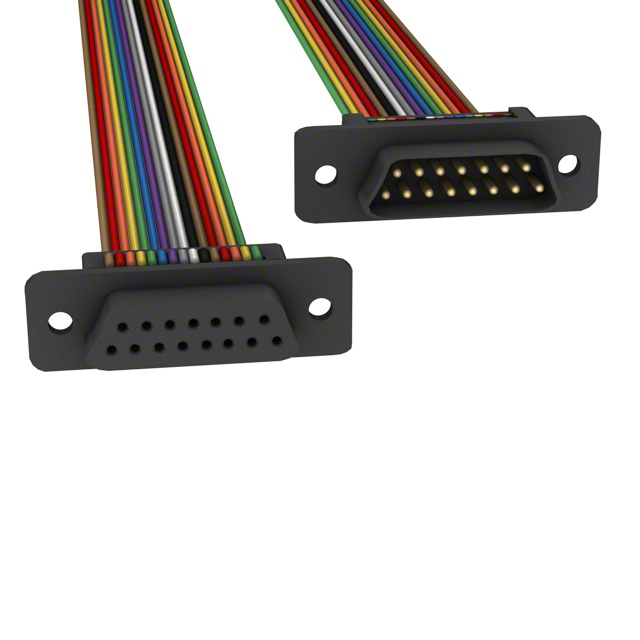

D-Sub Cable Assembly DB15 Multiple, Ribbon 10.00' (3.05m) Receptacle, Female Sockets to Plug, Male Pins Unshielded

Technical documentation and resources

Part	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Length	Length	Type	Contact Finish	2nd Connector	Color	Number of Positions	Shielding
Assmann WSW Components H7MFH-1510M	10 Áin	0.25 Ám	Female Sockets, Receptacle	10 ft	3.05 m	DB15	Gold	Plug, Male Pins	Multiple, Ribbon	15	Unshielded
Assmann WSW Components H7MFH-1506G	10 Áin	0.25 Ám	Female Sockets, Receptacle	6 ft	1.83 m	DB15	Gold	Plug, Male Pins		15	Unshielded
Assmann WSW Components H7MFH-1510G	10 Áin	0.25 Ám	Female Sockets, Receptacle	10 ft	3.05 m	DB15	Gold	Plug, Male Pins		15	Unshielded
Assmann WSW Components H7MFH-1506M	10 Áin	0.25 Ám	Female Sockets, Receptacle	6 ft	1.83 m	DB15	Gold	Plug, Male Pins	Multiple, Ribbon	15	Unshielded
