QSS-050-01-F-D-RA-WT

Active

Samtec Inc.

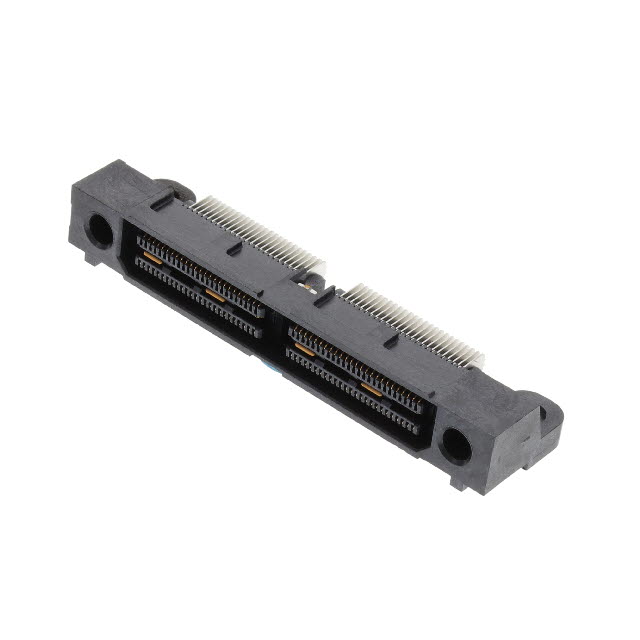

CONN SOCKET 100POS R/A SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSS Series Other Related Documents 03 QSS-025-01-F-D-RA Datasheet 02 +2

QSS-050-01-F-D-RA-WT

Active

Samtec Inc.

CONN SOCKET 100POS R/A SMD GOLD

Deep-Dive with AI

DocumentsQSS Series Other Related Documents 03 QSS-025-01-F-D-RA Datasheet 02 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSS-050-01-F-D-RA-WT

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Features	Solder Retention, Ground Bus (Plane)
Height Above Board	0.328 in
Height Above Board	8.33 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	100
Number of Rows	2
Pitch [x]	0.64 mm
Pitch [x]	0.025 in

QSS-050 Series

Headers & Wire Housings 0.635 mm Q Strip High-Speed Ground Plane Socket Strip

Part	Features	Height Above Board	Height Above Board	Mounting Type	Connector Type	Number of Rows	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Positions
Samtec Inc. QSS-050-01-H-D-A-GP	Board Guide Ground Bus (Plane) Mating Guide	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.76 Ám	30 Áin	5 mm	100
Samtec Inc. QSS-050-01-C-D-A-K-TR	Board Guide Ground Bus (Plane) Pick and Place	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	1.27 µm	50 µin	5 mm	100
Samtec Inc. QSS-050-01-F-D-RA-WT	Ground Bus (Plane) Solder Retention	0.328 in	8.33 mm	Surface Mount Right Angle	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.076 Ám	3 Áin		100
Samtec Inc. QSS-050-01-L-D-A-GP-K-TR	Board Guide Ground Bus (Plane) Mating Guide Pick and Place	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.25 Ám	10 Áin	5 mm	100
Samtec Inc. QSS-050-01-F-D-LC	Board Lock Ground Bus (Plane)	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.076 Ám	3 Áin	5 mm	100
Samtec Inc. QSS-050-01-L-D-A-GP-TR	Board Guide Ground Bus (Plane) Mating Guide Pick and Place	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.25 Ám	10 Áin	5 mm	100
Samtec Inc. QSS-025-01-H-D-A-LS2-TR	Board Guide Ground Bus (Plane) Mating Flange	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.76 Ám	30 Áin	5 mm	50
Samtec Inc. QSS-050-01-F-D-A-GP-TR	Board Guide Ground Bus (Plane) Mating Guide	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.076 Ám	3 Áin	5 mm	100
Samtec Inc. QSS-050-02-L-D-RA-WT-K	Ground Bus (Plane) Pick and Place Solder Retention	0.328 in	8.33 mm	Surface Mount Right Angle	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.25 Ám	10 Áin		100
Samtec Inc. QSS-075-01-F-D-GP	Ground Bus (Plane) Mating Guide	0.143 in	3.63 mm	Surface Mount	Socket Center Strip Contacts	2	Gold	0.64 mm	0.025 in	0.076 Ám	3 Áin	5 mm	150
