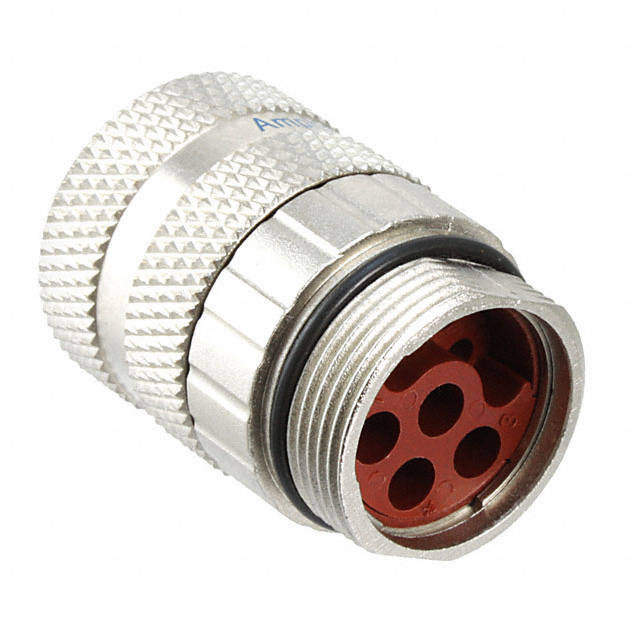

MB1CKN0800

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 8POS INLINE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLG HSG FMALE 8POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	MB1CKN0800

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1 mm, 2 mm
Contact Type	Crimp
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	PE
Number of Positions [custom]	3
Number of Positions [custom]	8
Number of Positions [custom]	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-8
Shielding	Shielded
Type	For Female Sockets

Part	Mounting Type	Insert Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Contact Shape	Type	Shielding	Features	Contact Size	Note	Connector Type	Shell Size - Insert	Shell Material	Orientation	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Housing Color	Material Flammability Rating	Contact Type	Voltage Rating	Primary Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Color	Termination	Current Rating (Amps)	Contact Finish - Mating	Number of Positions
Amphenol Sine Systems Corp MB1CKN0800	Free Hanging (In-Line)	Polyamide (PA66) Nylon 6/6	3	8	4	PE	Circular	For Female Sockets	Shielded	Coupling Nut	1 mm 2 mm	Contacts Not Included	Plug Housing	M23-8	Zinc Die Cast	Keyed	Nickel	-20 C	130 °C	IP67 - Dust Tight Waterproof	Silver	UL94 V-0	Crimp
Amphenol Sine Systems Corp MB1CKN0900-KIT	Free Hanging (In-Line)					PE			Shielded				Female Sockets Plug		Zinc Die Cast	Keyed	Nickel	-20 C	130 °C	IP67 - Dust Tight Waterproof				250 VAC	Metal	3	5	9	Silver	Crimp	10 A 30 A	Gold
Amphenol Sine Systems Corp MB1CKN0600-KIT	Free Hanging (In-Line)								Shielded				Female Sockets Plug		Zinc Die Cast	Keyed	Nickel	-20 C	130 °C	IP67 - Dust Tight Waterproof				630 VAC/DC	Metal				Silver	Crimp	28 A	Gold	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 (4 + 3 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
