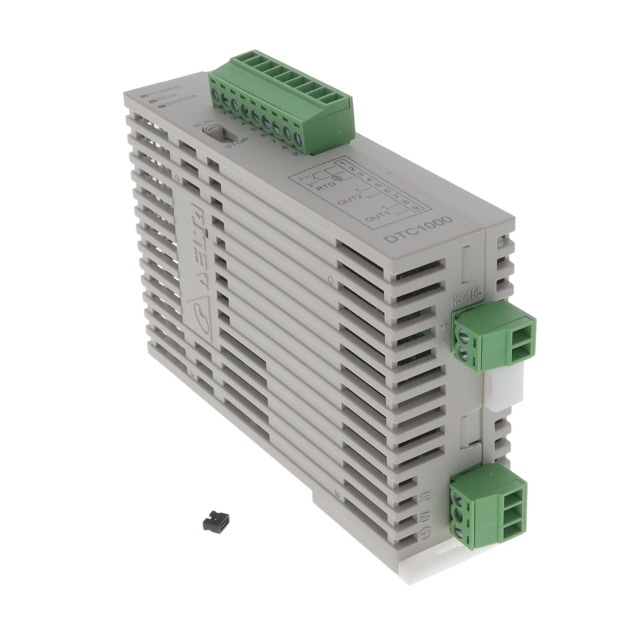

DTC1000L

Delta Electronics/Industrial Automation

DTC MPU, LINEAR VOLTAGE OUTPUT

Search across all available documentation for this part.

Delta Electronics/Industrial Automation

DTC MPU, LINEAR VOLTAGE OUTPUT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DTC1000L	DTC1000 Series

Communications	RS-485 (Modbus)	RS-485 (Modbus)
Control Method	On/Off, Proportional (PID)	On/Off, Proportional (PID)
Input Range [Max]	20 mA, 50 mV, 10 V, 1800 °C	10 - 1800 mA
Input Range [Min]	0 A, 0 V, -328 °F	-328 - 0 A
Mounting Type	Chassis Mount, DIN Rail	Chassis Mount, DIN Rail
Output Type	Analog	Analog
Termination Style	Screw Terminal	Screw Terminal
Type	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)
Voltage - Supply	24 VDC	24 VDC

DTC MPU, CURRENT OUTPUT

Part	Control Method	Voltage - Supply	Input Range [Max]	Input Range [Min]	Output Type	Termination Style	Communications	Type	Mounting Type
Delta Electronics/Industrial Automation DTC1000C	On/Off, Proportional (PID)	24 VDC	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	Analog	Screw Terminal	RS-485 (Modbus)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	Chassis Mount, DIN Rail
Delta Electronics/Industrial Automation DTC1000L	On/Off, Proportional (PID)	24 VDC	10 V, 20 mA, 50 mV, 1800 °C	-328 °F, 0 A, 0 V	Analog	Screw Terminal	RS-485 (Modbus)	Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U)	Chassis Mount, DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, TXK, U) 24VDC Chassis Mount, DIN Rail
