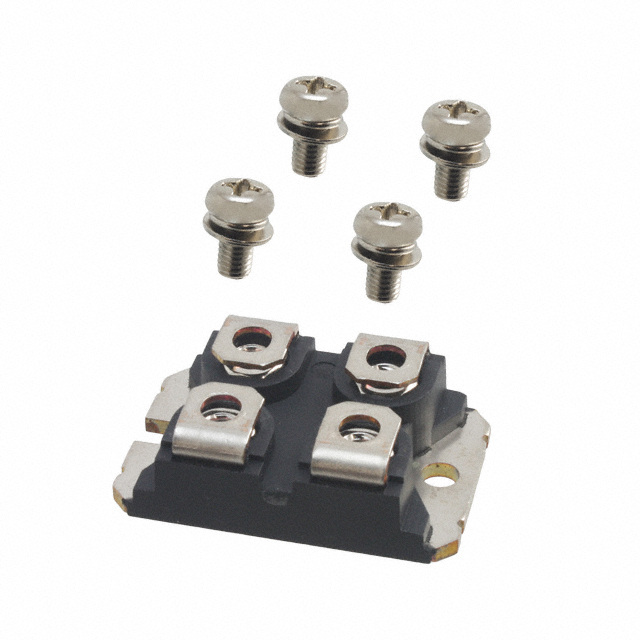

MMO74-16IO6

Active

IXYS

MODULE AC CTLR 1600V SOT-227B

Search across all available documentation for this part.

Active

IXYS

MODULE AC CTLR 1600V SOT-227B

Technical Specifications

Parameters and characteristics for this part

Specification	MMO74-16IO6

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	640 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	600 A
Current - On State (It (AV)) (Max) [Max]	34 A
Current - On State (It (RMS)) (Max) [Max]	53 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	SOT-227-4, miniBLOC
Structure	1-Phase Controller - All SCRs
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V
Voltage - Off State	1.6 kV

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - On State (It (RMS)) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Structure	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max] [x]	Voltage - Off State	Current - On State (It (AV)) (Max) [Max]	Number of SCRs, Diodes
IXYS MMO74-16IO6	1.5 V	53 A	100 mA	600 A	640 A	SOT-227-4 miniBLOC	150 °C	-40 °C	1-Phase Controller - All SCRs	Chassis Mount	100 mA	1.6 kV	34 A	2 SCRs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.6 kV 53 A 1-Phase Controller - All SCRs Chassis Mount SOT-227-4, miniBLOC
