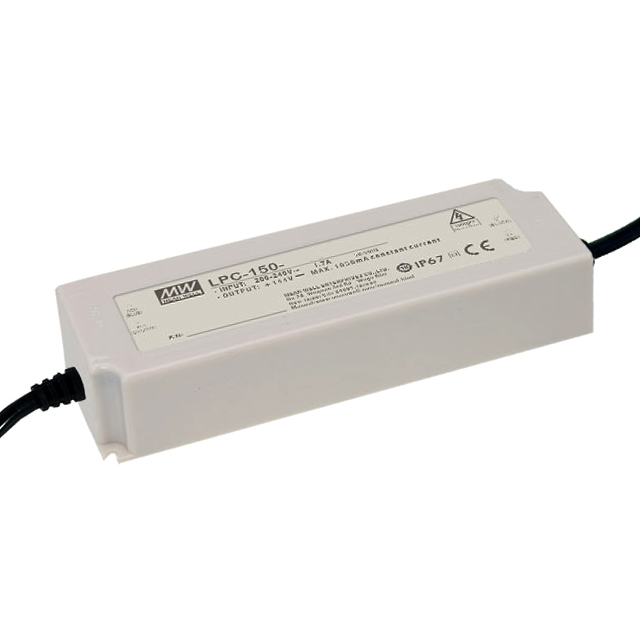

LPC-150-3150

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 24-48V 3.15A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LPC-150-3150

Active

MEAN WELL USA Inc.

LED DRVR CC AC/DC 24-48V 3.15A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LPC-150-3150

Approval Agency	CE
Current - Output (Max) [Max]	3.15 A
Efficiency	90 %
Features	OTP, OVP, SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	151 W
Ratings	IP67
Size / Dimension [x]	7.52 in
Size / Dimension [x]	191 mm
Size / Dimension [y]	63 mm
Size / Dimension [y]	2.48 in
Size / Dimension [z]	37.5 mm
Size / Dimension [z]	1.48 "
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	180 VAC
Voltage - Isolation	3000 V
Voltage - Output [Max]	48 V
Voltage - Output [Min]	24 V

LPC-150 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Type	Voltage - Input (Max) [Max]	Ratings	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Isolation	Termination Style	Efficiency	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Features	Topology	Voltage - Input (Min) [Min]	Approval Agency	Current - Output (Max)
MEAN WELL USA Inc. LPC-150-3150	50 °C	-25 °C	151 W	3.15 A	Chassis Mount	Constant Current	305 VAC	IP67	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	3000 V	Wire Leads	90 %	1	48 V	24 V	OTP OVP SCP	AC DC Converter	180 VAC	CE
MEAN WELL USA Inc. LPC-150-350	50 °C	-25 °C	151 W	350 mA	Chassis Mount	Constant Current	305 VAC	IP67	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	3000 V	Wire Leads	90 %	1	430 V	215 V	OTP OVP SCP	AC DC Converter	180 VAC	CE
MEAN WELL USA Inc. LPC-150-1750	50 °C	-25 °C	151 W	1.75 A	Chassis Mount	Constant Current	305 VAC	IP67	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	3000 V	Wire Leads	90 %	1	86 V	43 V	OTP OVP SCP	AC DC Converter	180 VAC	CE
MEAN WELL USA Inc. LPC-150-2800	50 °C	-25 °C	151 W		Chassis Mount	Constant Current	305 VAC	IP67	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	3000 V	Wire Leads	90 %	1	54 V	27 V	OTP OVP SCP	AC DC Converter	180 VAC	CE	2.8 A
MEAN WELL USA Inc. LPC-150-2450	50 °C	-25 °C	152 W	2.45 A	Chassis Mount	Constant Current	305 VAC	IP67	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	3000 V	Wire Leads	90 %	1	62 V	31 V	OTP OVP SCP	AC DC Converter	180 VAC	CE
MEAN WELL USA Inc. LPC-150-700	50 °C	-25 °C	151 W	700 mA	Chassis Mount	Constant Current	305 VAC	IP67	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	3000 V	Wire Leads	90 %	1	215 V	107 V	OTP OVP SCP	AC DC Converter	180 VAC	CE
MEAN WELL USA Inc. LPC-150-1400	50 °C	-25 °C	151 W	1.4 A	Chassis Mount	Constant Current	305 VAC	IP67	7.52 in	37.5 mm	63 mm	191 mm	1.48 "	2.48 in	3000 V	Wire Leads	90 %	1	108 V	54 V	OTP OVP SCP	AC DC Converter	180 VAC	CE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 34.78
		5	$ 32.24
		10	$ 31.21
		25	$ 29.89

Description

General part information

LPC-150 Series

3.15A 24 ~ 48V Constant Current LED Driver AC DC Converter Topology 1 Output
