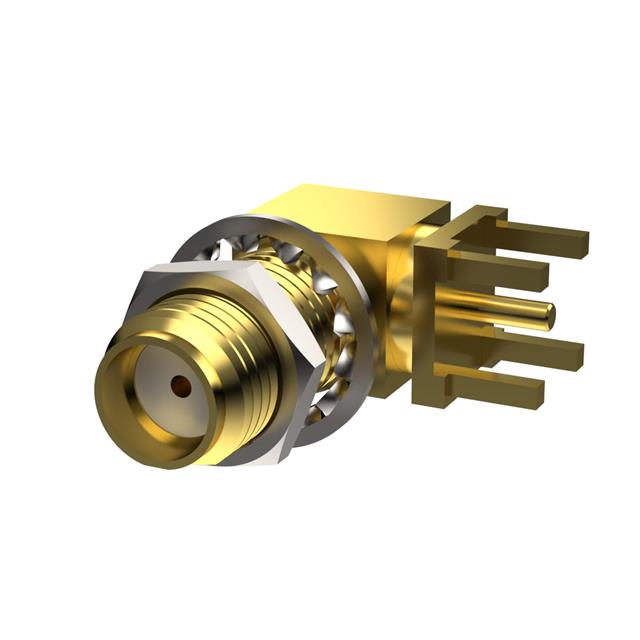

PCB.114SMAFRPRAJ.A

Active

TAOGLAS

SMA(F)RA RP FOR PCB MOUNT AU PLA

Search across all available documentation for this part.

Active

TAOGLAS

SMA(F)RA RP FOR PCB MOUNT AU PLA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PCB.114SMAFRPRAJ.A	PCB.114SMA Series

Body Finish	Gold	Gold, Nickel
Center Contact Plating	Gold	Gold
Connector Style	RP-SMA	SMA, RP-SMA
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder
Housing Color	Gold	Gold, Silver
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Shield Termination	Solder	Solder

RF / COAXIAL CONNECTOR, SMA COAXIAL, RIGHT ANGLE BULKHEAD JACK, THROUGH HOLE RIGHT ANGLE, 50 OHM

Part	Number of Ports	Connector Type	Center Contact Plating	Connector Style	Body Finish	Contact Termination	Shield Termination	Mounting Feature	Housing Color	Mounting Type
TAOGLAS PCB.114SMAFRA.YC	1	Female Socket, Jack	Gold	SMA	Gold	Solder	Solder	Bulkhead - Front Side Nut	Gold	Panel Mount, Right Angle, Through Hole
TAOGLAS PCB.114SMAFRA.NI	1	Female Socket, Jack	Gold	SMA	Nickel	Solder	Solder	Bulkhead - Front Side Nut	Silver	Panel Mount, Right Angle, Through Hole
TAOGLAS PCB.114SMAFRPRAJ.A	1	Female Socket, Jack	Gold	RP-SMA	Gold	Solder	Solder	Bulkhead - Front Side Nut	Gold	Panel Mount, Right Angle, Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RP-SMA Connector Jack, Female Socket Panel Mount, Through Hole, Right Angle Solder
