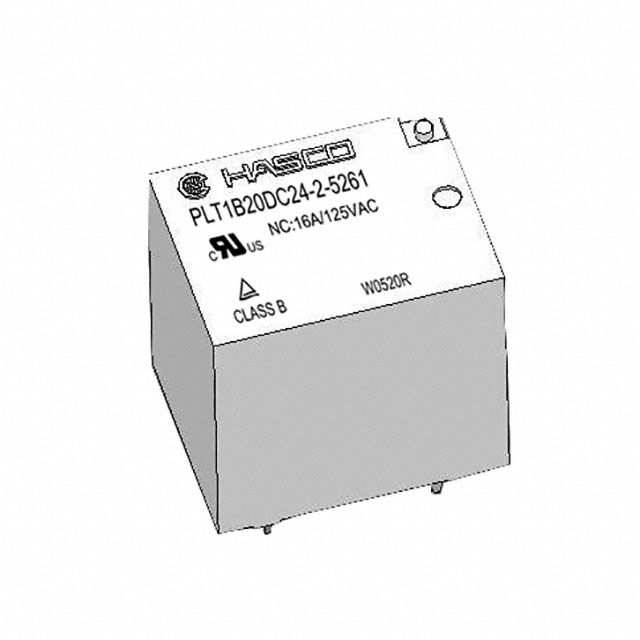

PLT1B20DC24-2-5261
ActiveHasco Relays
RELAY SPST 20A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLT1B20DC24-2-5261 |
|---|---|
| Coil Current | 15 mA |
| Coil Insulation | Class B |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NC (1 Form B) |
| Contact Material | Silver Alloy |
| Contact Rating (Current) | 20 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage [Max] | 277 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 30 | $ 2.35 | |
Description
General part information
PLT1B Series
Relay SPST-NC (1 Form B) 24VDC Coil Through Hole
