R141680000

Active

Radiall USA, Inc.

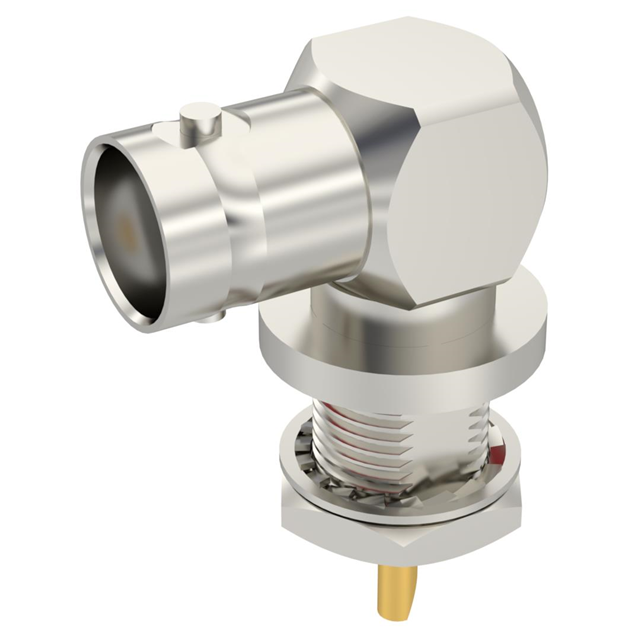

BNC / RIGHT ANGLE BULKHEAD JACK

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / RIGHT ANGLE BULKHEAD JACK

Technical Specifications

Parameters and characteristics for this part

Specification	R141680000

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Type	Shield Termination	Body Material	Housing Color	Connector Style	Dielectric Material	Mounting Feature	Fastening Type	Impedance	Mating Cycles	Number of Ports	Frequency - Max [Max]	Voltage Rating	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Contact Termination	Connector Type	Center Contact Material
Radiall USA, Inc. R141680000	Panel Mount Right Angle	Solder	Brass	Silver	BNC	Polytetrafluoroethylene (PTFE)	Bulkhead - Rear Side Nut	Bayonet Lock	50 Ohms	500	1	4 GHz	500 V	Gold	-65 ░C	165 °C	Nickel	Solder Cup	Female Socket Jack	Beryllium Copper Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 40.18

General part information

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
