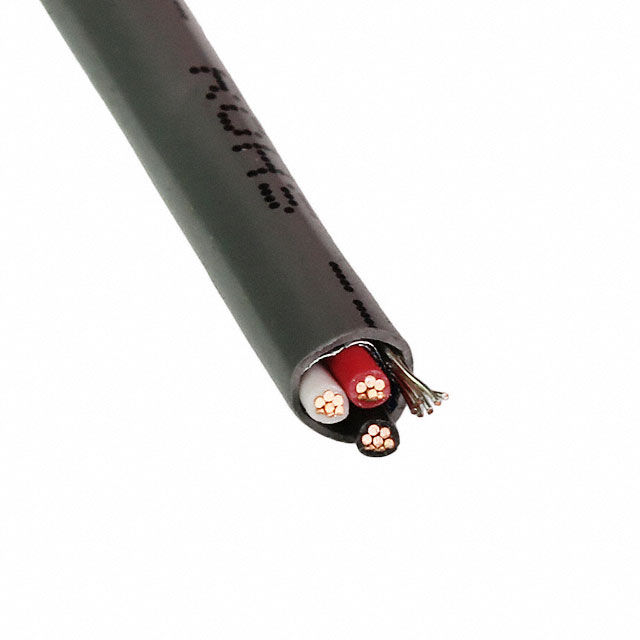

Specification	E2003S.18.10

Cable Type	Conductor, Multi
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand Count	7 Strands
Conductor Strand Gauge	30
Features	Drain Wire
Jacket (Insulation) Diameter	0.135 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.015 in
Jacket Color	Gray
Length	500 ft
Number of Conductors	3
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-20 °C
Shield Coverage	100 %
Shield Material	Flexfoil®
Shield Type	Foil
Usage	Alarm, Sound, Security
Voltage	300 V
Wire Gauge	22 AWG

E2003S Series

Part	Shield Material	Shield Coverage	Conductor Material	Conductor Insulation	Shield Type	Features	Operating Temperature (Min)	Operating Temperature (Max)	Number of Conductors	Voltage	Length	Jacket (Insulation) Diameter	Conductor Strand Gauge	Conductor Strand Count	Usage	Jacket (Insulation) Material	Wire Gauge	Jacket Color	Cable Type	Jacket (Insulation) Thickness
Prysmian Group E2003S.18.10	Flexfoil®	100 %	Bare Copper	Poly-Vinyl Chloride (PVC)	Foil	Drain Wire	-20 °C	75 °C	3	300 V	500 ft	0.135 in	30	7 Strands	Alarm Security Sound	Poly-Vinyl Chloride (PVC)	22 AWG	Gray	Conductor Multi	0.015 in
