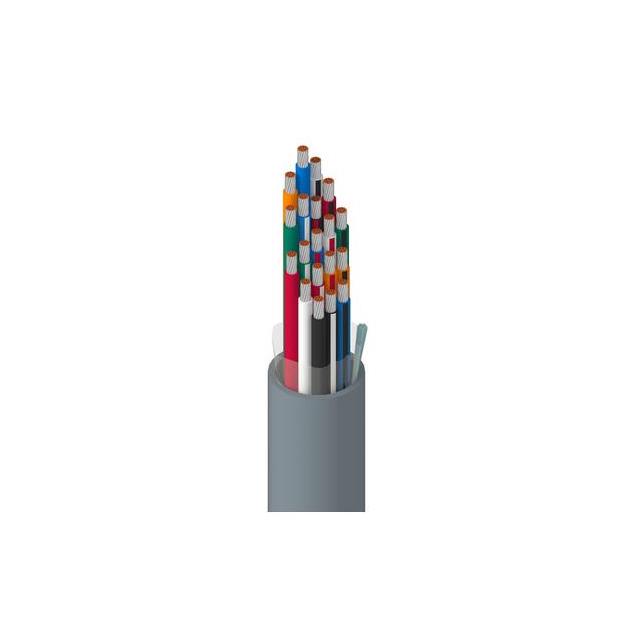

8624 060500

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 19 #16 PVC PVC

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-CONDUCTOR CABLES 19 #16 PVC PVC

Technical Specifications

Parameters and characteristics for this part

Specification	8624 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.065 in
Jacket (Insulation) Thickness	1.651 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	19
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	16 AWG

Part	Usage	Conductor Insulation	Cable Type	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Length [x]	Length [x]	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Conductor Material	Wire Gauge
Belden Inc. 8624 060500	Audio Control Instrumentation	Poly-Vinyl Chloride (PVC)	Multi-Conductor	Chrome	0.065 in	1.651 mm	-20 C	80 C	Poly-Vinyl Chloride (PVC)	500 '	152.4 m	19 Strands	29 AWG	19	Copper Tinned	16 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 32.50

General part information

19 Conductor Multi-Conductor Cable Chrome 16 AWG 500.0' (152.4m)
