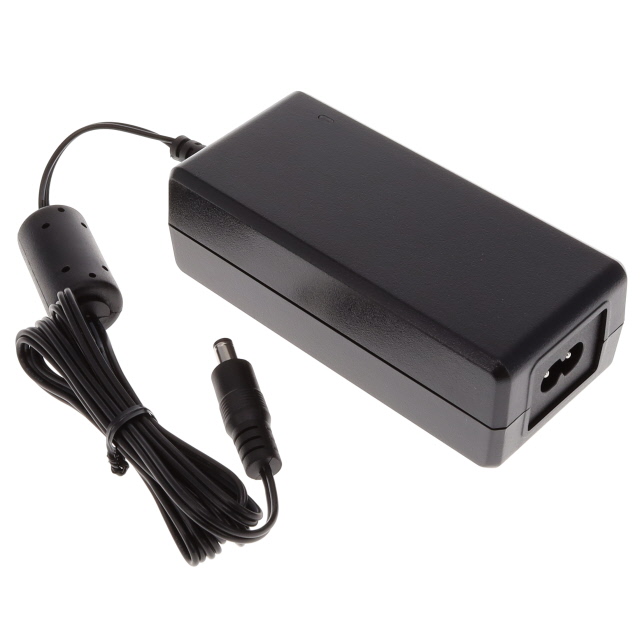

PPL65W-560

Active

Phihong USA

AC/DC DESKTOP ADAPTER 56V 66W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPL65W-560

Active

Phihong USA

AC/DC DESKTOP ADAPTER 56V 66W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPL65W-560

Applications	ITE (Commercial)
Approval Agency	IEC, cULus
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	1.17 A
Efficiency	CoC Tier 2, Level VI
Form	Desktop (Class II)
Input Connector	IEC 320-C8
Input Type	Cord
No Load Power Consumption [Max]	150 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.1 mm
Output Connector [z]	10 mm
Polarization	Positive Center
Region Utilized	International
Size / Dimension [x]	4.53 "
Size / Dimension [x]	115 mm
Size / Dimension [y]	2.09 "
Size / Dimension [y]	53 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V

PPL65W Series

Part	Efficiency	Approval Agency	Input Connector	Current - Output (Max) [Max]	Output Connector [z]	Output Connector [diameter]	Output Connector	Voltage - Output	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Operating Temperature [Max]	Applications	Cord Length	Cord Length	Polarization	Standard Number	Form	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Input Type	Region Utilized	Power (Watts)
Phihong USA PPL65W-560	CoC Tier 2 Level VI	cULus IEC	IEC 320-C8	1.17 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	56 V	90 VAC	264 VAC	150 mW	40 °C	ITE (Commercial)	1.5 m	59 in	Positive Center	62368-1	Desktop (Class II)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Cord	International
Phihong USA PPL65W-240	CoC Tier 2 Level VI	cULus IEC	IEC 320-C8	2.71 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	24 V	90 VAC	264 VAC	150 mW	40 °C	ITE (Commercial)	1.5 m	59 in	Positive Center	62368-1	Desktop (Class II)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Cord	International	65 W
Phihong USA PPL65W-480	CoC Tier 2 Level VI	cULus IEC	IEC 320-C8	1.36 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	48 V	90 VAC	264 VAC	150 mW	40 °C	ITE (Commercial)	1.5 m	59 in	Positive Center	62368-1	Desktop (Class II)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Cord	International	65 W
Phihong USA PPL65W-180	CoC Tier 2 Level VI	cULus IEC	IEC 320-C8	3.62 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	18 V	90 VAC	264 VAC	150 mW	40 °C	ITE (Commercial)	1.5 m	59 in	Positive Center	62368-1	Desktop (Class II)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Cord	International	65 W
Phihong USA PPL65W-120	CoC Tier 2 Level VI	cULus IEC	IEC 320-C8	5 A	10 mm	2.1 mm 5.5 mm	Barrel Plug	12 V	90 VAC	264 VAC	150 mW	40 °C	ITE (Commercial)	1.5 m	59 in	Positive Center	62368-1	Desktop (Class II)	38 mm	2.09 "	1.5 "	4.53 "	53 mm	115 mm	Cord	International	60 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.08
		10	$ 19.68
		25	$ 19.29
		50	$ 18.90
		100	$ 17.13

Description

General part information

PPL65W Series

56V 66 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
