794631-8
ObsoleteTE Connectivity AMP Connectors

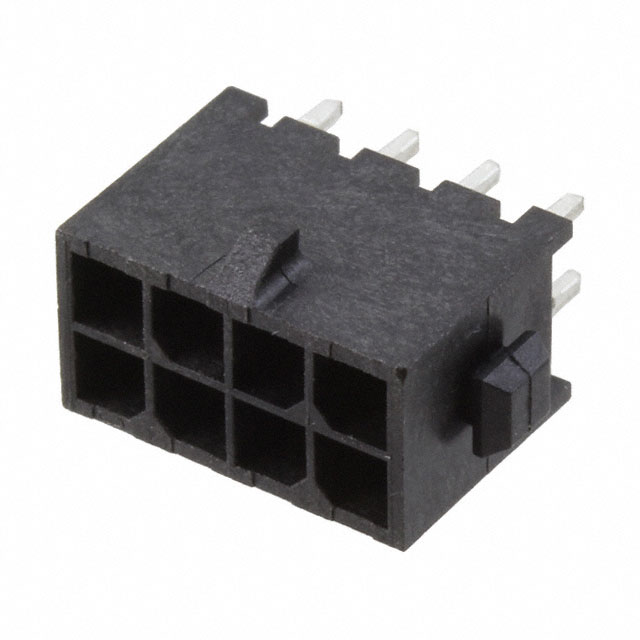

CONN HEADER VERT 8POS 3MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794631-8
ObsoleteTE Connectivity AMP Connectors
CONN HEADER VERT 8POS 3MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794631-8 | 794631 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Tin |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Post [x] | 3.18 mm | 3.18 mm |
| Contact Length - Post [x] | 0.125 in | 0.125 in |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge | Varies by Wire Gauge |
| Fastening Type | Locking Ramp | Locking Ramp |
| Insulation Color | Black | Black |
| Insulation Height | 9.25 mm | 9.25 mm |
| Insulation Height | 0.364 in | 0.364 in |
| Insulation Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 2 - 24 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch - Mating | 0.118 in | 0.118 in |
| Pitch - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 3 mm | 3 mm |
| Row Spacing - Mating | 0.118 in | 0.118 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder, Press-Fit | Solder, Press-Fit |
| Voltage Rating | 250 VDC | 250 VDC |
794631 Series
CONN HEADER VERT 24POS 3MM
| Part | Current Rating (Amps) | Shrouding | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Material | Termination | Contact Finish - Post | Number of Positions | Style | Fastening Type | Mounting Type | Insulation Color | Connector Type | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Type | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Contact Finish - Mating | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 2-794631-4 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin-Lead | 24 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All |
TE Connectivity AMP Connectors 794631-6 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin-Lead | 6 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All |
TE Connectivity AMP Connectors 3-794631-2 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | Square | Brass | Press-Fit, Solder | Tin | 2 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All | ||
TE Connectivity AMP Connectors 1-794631-4 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin-Lead | 14 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All |
TE Connectivity AMP Connectors 1-794631-0 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin-Lead | 10 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All |
TE Connectivity AMP Connectors 794631-8 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin-Lead | 8 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All |
TE Connectivity AMP Connectors 4-794631-0 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin | 10 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold or Gold-Palladium | All |
TE Connectivity AMP Connectors 3-794631-6 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin | 6 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold or Gold-Palladium | All |
TE Connectivity AMP Connectors 794631-2 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | Square | Brass | Press-Fit, Solder | Tin-Lead | 2 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All | ||
TE Connectivity AMP Connectors 3-794631-4 | Varies by Wire Gauge | Shrouded - 4 Wall | UL94 V-0 | -40 °C | 105 ░C | 2 | 0.118 in | 3 mm | Square | Brass | Press-Fit, Solder | Tin | 4 | Board to Cable/Wire | Locking Ramp | Through Hole | Black | Header | 3.18 mm | 0.125 in | 2.54 µm | 100 µin | General Purpose | Male Pin | 9.25 mm | 0.364 in | 15 µin | 0.38 µm | 250 VDC | 3 mm | 0.118 in | Nylon, Polyamide (PA) | Gold | All |
