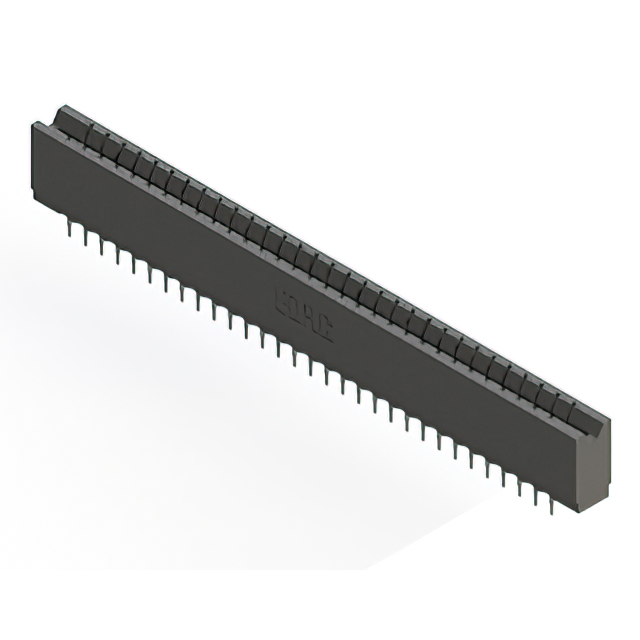

737-062-520-206
ActiveEDAC Inc.
3.96MM STRAIGHT 62P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
737-062-520-206
ActiveEDAC Inc.
3.96MM STRAIGHT 62P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 737-062-520-206 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Press-Fit |
| Termination Rows | 2 |
737-062 Series
| Part | Contact Finish | Contact Type | Mounting Type | Number of Positions | Pitch [x] | Pitch [x] | Termination | Number of Positions/Bay/Row [custom] | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Number of Rows | Material - Insulation | Card Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Termination Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Gold | Cantilever | Through Hole | 62 | 0.156 in | 3.96 mm | Press-Fit | 31 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | 0.76 Ám | 30 Áin | Dual | Female | -40 °C | 105 ░C | 2 |
EDAC Inc. | Gold | Cantilever Make Before Break | Through Hole | 62 | 0.156 in | 3.96 mm | Press-Fit | 31 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | 0.76 Ám | 30 Áin | Dual | Female | -40 °C | 105 ░C | 2 |
EDAC Inc. | Gold | Cantilever | Through Hole | 62 | 0.156 in | 3.96 mm | Press-Fit | 31 | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2 | Polyester Thermoplastic | Non Specified - Dual Edge | 0.76 Ám | 30 Áin | Dual | Female | -40 °C | 105 ░C | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
737-062 Series
62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
