MF-RG650-AP

Active

Bourns Inc.

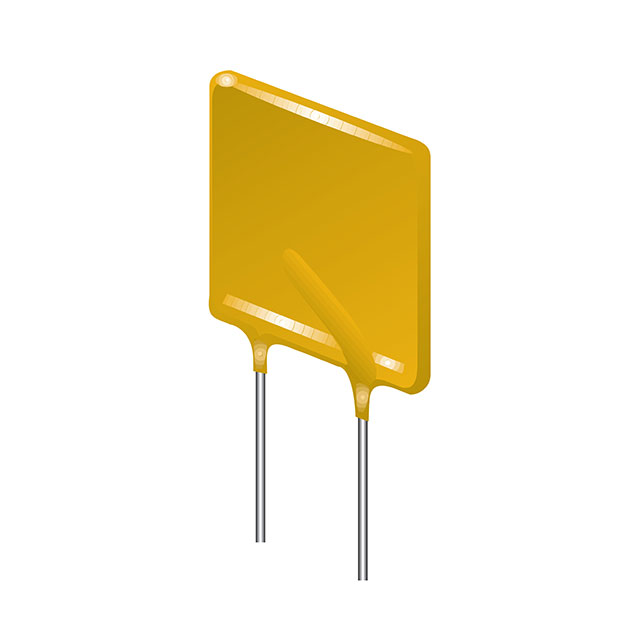

PTC RESET FUSE 16V 6.5A RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMultifuse Product Guide Datasheet

MF-RG650-AP

Active

Bourns Inc.

PTC RESET FUSE 16V 6.5A RADIAL

Deep-Dive with AI

DocumentsMultifuse Product Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MF-RG650-AP

Current - Hold (Ih) (Max) [Max]	6.5 A
Current - Max [Max]	100 A
Current - Trip (It)	11.1 A
Grade	Automotive
Height - Seated (Max) [Max] [z]	0.776 in
Height - Seated (Max) [Max] [z]	19.7 mm
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Qualification	AEC-Q200
Resistance - Initial (Ri) (Min) [Min]	8.8 mOhms
Resistance - Post Trip (R1) (Max) [Max]	24 mOhms
Size / Dimension [x]	0.441 ", 11.2 mm
Size / Dimension [y]	0.118 in, 3 mm
Time to Trip	3.5 s
Type	Polymeric
Voltage - Max [Max]	16 V

MF-RG Series

Part	Time to Trip	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Qualification	Current - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Initial (Ri) (Min) [Min]	Grade	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Current - Hold (Ih) (Max) [Max]	Mounting Type	Resistance - Post Trip (R1) (Max) [Max]	Type	Package / Case	Current - Trip (It)	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Current - Hold (Ih) (Max)	Height - Seated (Max) [Max]
Bourns Inc. MF-RG650-0	3.5 s	0.118 in 3 mm	0.441 " 11.2 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C	8.8 mOhms	Automotive	0.776 in	19.7 mm	5.1 mm	0.201 in	6.5 A	Through Hole	24 mOhms	Polymeric	Disc Radial	11.1 A
Bourns Inc. MF-RG650-AP	3.5 s	0.118 in 3 mm	0.441 " 11.2 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C	8.8 mOhms	Automotive	0.776 in	19.7 mm	5.1 mm	0.201 in	6.5 A	Through Hole	24 mOhms	Polymeric	Disc Radial	11.1 A
Bourns Inc. MF-RG500-AP	2 s	3 mm	10.4 mm	16 V		100 A	85 °C	-40 °C	15 mOhms				5.1 mm	0.201 in	5 A	Through Hole	34 mOhms	Polymeric	Disc Radial	8.5 A	14.3 mm	0.563 in	0.409 in	0.118 in
Bourns Inc. MF-RG1000-AP	6 s	3 mm	16.5 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C	4 mOhms	Automotive	0.854 "	21.7 mm	5.1 mm	0.201 in	10 A	Through Hole	10.2 mOhms	Polymeric	Disc Radial	17 A			0.65 in	0.118 in
Bourns Inc. MF-RG1000-2	6 s	3 mm	16.5 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C	4 mOhms	Automotive	0.854 "	21.7 mm	5.1 mm	0.201 in	10 A	Through Hole	10.2 mOhms	Polymeric	Disc Radial	17 A			0.65 in	0.118 in
Bourns Inc. MF-RG1100-0	15.2 s	3 mm	17.5 mm	16 V		100 A	85 °C	-40 °C	3 mOhms		0.988 "	25.1 mm	5.1 mm	0.201 in		Through Hole	10 mOhms	Polymeric	Disc Radial	18.7 A			0.689 in	0.118 in	CSA TUV UR	11 A
Bourns Inc. MF-RG800-2	5 s	0.118 in 3 mm	12.7 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C		Automotive	0.823 in	20.9 mm	5.1 mm	0.201 in	8 A	Through Hole	17.5 mOhms	Polymeric	Disc Radial	13.6 A
Bourns Inc. MF-RG1000-0	6 s	3 mm	16.5 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C	4 mOhms	Automotive	0.854 "	21.7 mm	5.1 mm	0.201 in	10 A	Through Hole	10.2 mOhms	Polymeric	Disc Radial	17 A			0.65 in	0.118 in
Bourns Inc. MF-RG400-AP	1.7 s	3 mm	9.9 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C	21 mOhms	Automotive			5.1 mm	0.201 in		Through Hole	60 mOhms	Polymeric	Disc Radial			0.504 in	0.39 "	0.118 in		4 A	12.8 mm
Bourns Inc. MF-RG650-2	3.5 s	0.118 in 3 mm	0.441 " 11.2 mm	16 V	AEC-Q200	100 A	85 °C	-40 °C	8.8 mOhms	Automotive	0.776 in	19.7 mm	5.1 mm	0.201 in	6.5 A	Through Hole	24 mOhms	Polymeric	Disc Radial	11.1 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	3000	$ 0.42

Description

General part information

MF-RG Series

Polymeric PTC Resettable Fuse 16V 6.5 A Ih Through Hole Radial, Disc

Documents

Technical documentation and resources

Multifuse Product Guide

Datasheet
