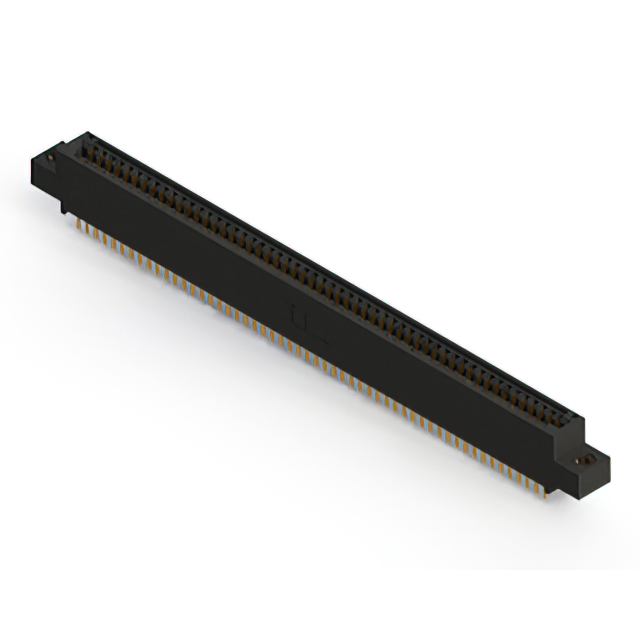

395-108-525-507
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-108-525-507
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-108-525-507 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 108 |
| Number of Positions/Bay/Row [custom] | 54 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-108 Series
...
| Part | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Color | Pitch [x] | Pitch [x] | Contact Material | Contact Type | Gender | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Read Out | Number of Positions/Bay/Row [custom] | Mounting Type | Termination | Number of Rows | Card Type | Material - Insulation | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole Right Angle | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | ||||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole | Wire Wrap | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole Right Angle | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole Right Angle | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | 4-40 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Board Edge Straddle Mount | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | M3 Threaded Insert Top Mount Opening | Card Extender | ||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole | Wire Wrap | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | ||||||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Board Edge Straddle Mount | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | Floating Bobbin Top Mount Opening | Card Extender | 2.95 mm | 0.116 in | ||
EDAC Inc. | 2 | 10 Áin | 0.25 Ám | Gold | -40 °C | 105 ░C | 108 | Black | 2.54 mm | 0.1 in | Copper Alloy | Cantilever | Female | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Dual | 54 | Through Hole Right Angle | Solder | 2 | Non Specified - Dual Edge | Polyester Thermoplastic | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
395-108 Series
108 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
