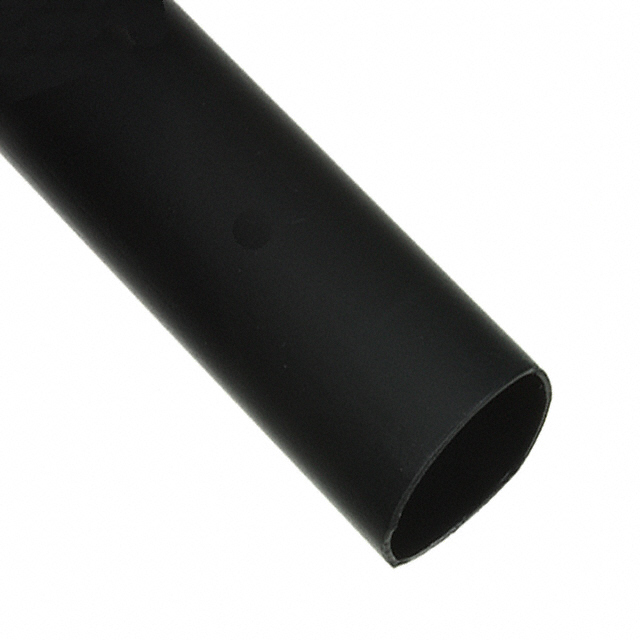

Q5-3X-3/4-01-QB48IN-5

Active

Qualtek

HEATSHRINK 3/4" X 4' BLACK 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK 3/4" X 4' BLACK 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5-3X-3/4-01-QB48IN-5

Color	Black
Features	Adhesive Lined, Flame Retardant
Inner Diameter - Recovered	5.99 mm
Inner Diameter - Recovered	0.236 in
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.084 in
Recovered Wall Thickness	2.13 mm
Shelf Life	60 Months
Shrink Temperature	80 °C
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shelf Life	Material	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Type	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Shrink Temperature
Qualtek Q5-3X-3/4-01-QB48IN-5	0.084 in	2.13 mm	-55 °C	125 °C	Black	60 Months	Polyolefin (PO)	5.99 mm	0.236 in	1.22 m	4 ft	1	3	Tubing Flexible	-50 °F -10 °C	40 °C	Adhesive Lined Flame Retardant	80 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.750" (19.05mm) 3 to 1 Black 4.00' (1.22m)
