ZMTG03CJS02WCE24
ActiveMICROSWITCH, MINIATURE, SIMULATED LEAF ROLLER, SPDT, WIRE LEADED, 3 A
Deep-Dive with AI
Search across all available documentation for this part.
ZMTG03CJS02WCE24
ActiveMICROSWITCH, MINIATURE, SIMULATED LEAF ROLLER, SPDT, WIRE LEADED, 3 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZMTG03CJS02WCE24 | Zmt0 Series Series |
|---|---|---|
| Actuator Type | - | Simulated Roller, Lever, Round (Pin Plunger), Leaf |
| Circuit | - | SPDT |
| Current Rating (Amps) | - | 3 - 5 A |
| Electrical Life | - | 10000 Cycles |
| Ingress Protection | - | IP67 - Dust Tight, Waterproof |
| Mechanical Life | - | 1000000 Cycles |
| Mounting Type | - | Chassis Mount, Through Hole, Through Hole, Right Angle |
| null | - | |
| Operating Force | - | 48 - 170 gf |
| Operating Position | - | 8.5 - 10.1 mm |
| Operating Position | - | 0.335 - 0.398 in |
| Operating Position | - | 0.232 - 0.358 in |
| Operating Position | - | 5.9 - 9.1 mm |
| Operating Position | - | 0.28 in |
| Operating Position | - | 7.1 mm |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Overtravel | - | 0.008 - 0.026 in |
| Overtravel | - | 0.2 - 0.7 mm |
| Pretravel | - | 0.02 - 0.138 in |
| Pretravel | - | 0.5 - 3.5 mm |
| Release Force | - | 7 - 35 gf |
| Switch Function | - | On-Mom |
| Termination Style | - | Wire Leads, PC Pin, Solder Lug |
| Voltage Rating - AC | - | 125 V |
| Voltage Rating - DC | - | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.47 | |
| 10 | $ 3.58 | |||
| 25 | $ 3.40 | |||
| 50 | $ 3.31 | |||
| 100 | $ 3.15 | |||
Zmt0 Series Series

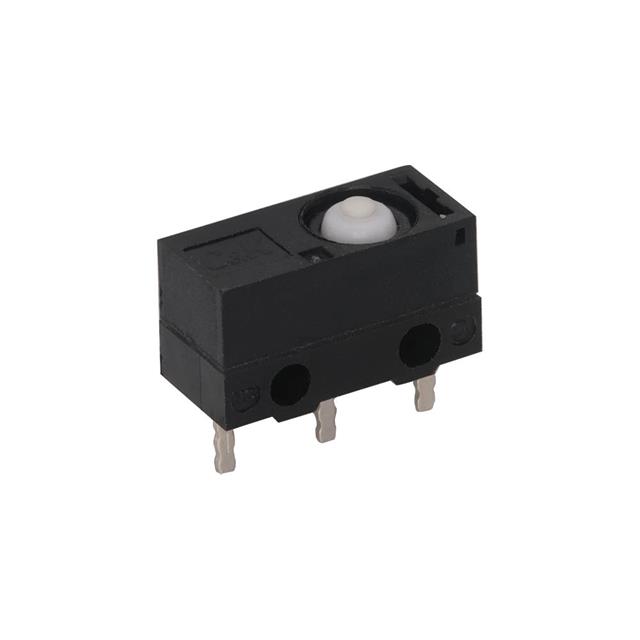

Mini Size Sealed Snap-Acting Switch
| Part | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Ingress Protection | Mounting Type | Release Force | Voltage Rating - DC | Actuator Type | Pretravel | Pretravel | Overtravel | Overtravel | Voltage Rating - AC | Termination Style | Switch Function | Current Rating (Amps) | Circuit | Operating Position [custom] | Operating Position [custom] | Operating Force | Operating Position | Operating Position | Operating Position [x] | Operating Position [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE ZMT03ACJS02JCE22 | |||||||||||||||||||||||||
LITTELFUSE ZMTG03CJS02WCE24 | 1000000 Cycles | 85 °C | -40 °C | 10000 Cycles | IP67 - Dust Tight, Waterproof | Chassis Mount | 8 gf | 24 V | Lever, Simulated Roller | 0.118 in | 3 mm | 0.024 in | 0.6 mm | 125 V | Wire Leads | On-Mom | 3 A | SPDT | 10.1 mm | 0.398 in | 50 gf | ||||
LITTELFUSE ZMTG03CJP00PCE | 1000000 Cycles | 85 °C | -40 °C | 10000 Cycles | IP67 - Dust Tight, Waterproof | Through Hole | 35 gf | 24 V | Round (Pin Plunger) | 0.02 in | 0.5 mm | 0.008 in | 0.2 mm | 125 V | PC Pin | On-Mom | 3 A | SPDT | 170 gf | 0.232 in | 5.9 mm | ||||
LITTELFUSE ZMT03ACJP00SCE | 1000000 Cycles | 85 °C | -40 °C | 10000 Cycles | IP67 - Dust Tight, Waterproof | Chassis Mount | 35 gf | 24 V | Round (Pin Plunger) | 0.02 in | 0.5 mm | 0.008 in | 0.2 mm | 125 V | Solder Lug | On-Mom | 3 A | SPDT | 170 gf | 0.232 in | 5.9 mm | ||||
LITTELFUSE ZMT01ACFP00PCE | |||||||||||||||||||||||||
LITTELFUSE ZMT05ACJP00SCE | |||||||||||||||||||||||||
LITTELFUSE ZMTG03CJS02WCE24 | |||||||||||||||||||||||||
LITTELFUSE ZMT03ACJS05KCE22 | 1000000 Cycles | 85 °C | -40 °C | 10000 Cycles | IP67 - Dust Tight, Waterproof | Chassis Mount | 7 gf | 24 V | Lever, Simulated Roller | 0.138 in | 3.5 mm | 0.026 in | 0.7 mm | 125 V | Wire Leads | On-Mom | 3 A | SPDT | 48 gf | 0.358 in | 9.1 mm | ||||
LITTELFUSE ZMT03ACJS05LCE | |||||||||||||||||||||||||
LITTELFUSE ZMT05ACJS06JCE20 |
Description
General part information
Zmt0 Series Series
ZMT series sealed snap-acting switches are often found used in automotive interior applications where detect mechanism are required through a snap acting switch. The ZMT is perfect for PCB detection switches, communication devices and various types of testing equipment as well. Featuring a compact size and IP67 sealed (which is ideal when space is limited), the ZMT sealed series give applications a long electrical and mechanical life, ensuring they stand up to repeated use.
