842-068-542-201
ActiveEDAC Inc.

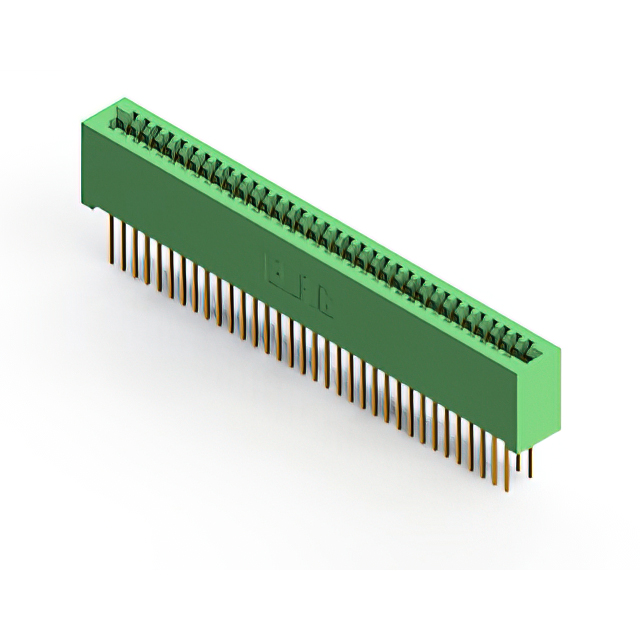

CONN EDGE DUAL FMALE 68POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-068-542-201
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 68POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-068-542-201 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 68 |
| Number of Positions/Bay/Row [custom] | 34 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
842-068 Series
| Part | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Material - Insulation | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Gender | Number of Positions | Color | Termination | Number of Positions/Bay/Row [custom] | Termination Rows | Card Type | Number of Rows | Mounting Type | Contact Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Solder | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Solder | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole Right Angle | Cantilever | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Solder | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Solder | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Solder | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever | Floating Bobbin Flush Mount | 2.95 mm | 0.116 in | |
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Wire Wrap | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Solder Eyelet(s) | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Wire Wrap | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever | ||||
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Solder | 34 | 2 | Non Specified - Dual Edge | 2 | Board Edge Straddle Mount | Cantilever | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | Card Extender |
EDAC Inc. | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | Gold | 125 °C | -40 °C | Dual | Diallyl Phthalate (DAP) | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Female | 68 | Green | Wire Wrap | 34 | 2 | Non Specified - Dual Edge | 2 | Through Hole | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 79.62 | |
Description
General part information
842-068 Series
68 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
