IS34MW01G164-BLI

Active

ISSI, Integrated Silicon Solution Inc

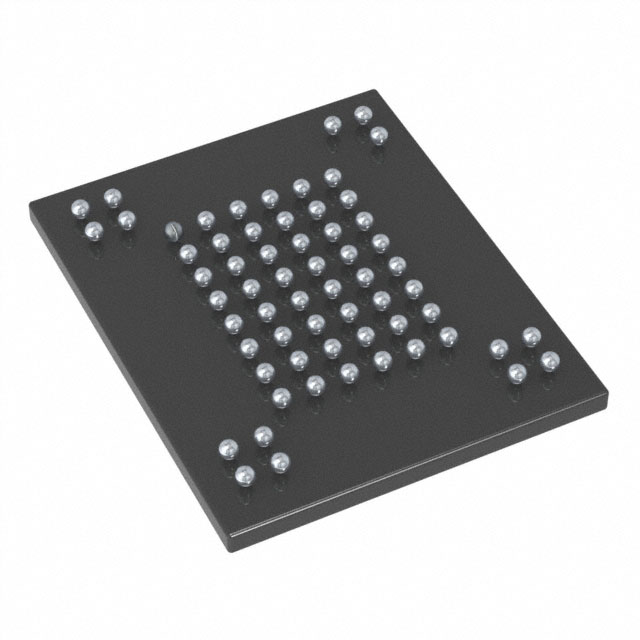

IC FLASH 1GBIT PARALLEL 63VFBGA

Search across all available documentation for this part.

Active

ISSI, Integrated Silicon Solution Inc

IC FLASH 1GBIT PARALLEL 63VFBGA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS34MW01G164-BLI	IS34MW01 Series

Access Time	45 ns	30 - 45 ns
Memory Format	FLASH	FLASH
Memory Interface	Parallel	Parallel
Memory Organization	64 M	64 M
Memory Size	1 Mbit	1 Mbit
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	63-VFBGA	63-VFBGA
Supplier Device Package	63-VFBGA (9x11)	63-VFBGA (9x11)
Technology	FLASH - NAND (SLC)	FLASH - NAND (SLC)
Voltage - Supply [Max]	1.95 V	1.95 V
Voltage - Supply [Min]	1.7 V	1.7 V
Write Cycle Time - Word, Page [custom]	45 ns	45 ns
Write Cycle Time - Word, Page [custom]	45 ns	45 ns

IC FLASH 1GBIT PAR 63FBGA

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Interface	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Package / Case	Supplier Device Package	Access Time	Memory Format	Memory Organization	Technology	Mounting Type	Memory Type
ISSI, Integrated Silicon Solution Inc IS34MW01G164-BLI-TR	1.95 V	1.7 V	Parallel	85 °C	-40 °C	1 Mbit	45 ns	45 ns	63-VFBGA	63-VFBGA (9x11)	30 ns	FLASH	64 M	FLASH - NAND (SLC)	Surface Mount	Non-Volatile
ISSI, Integrated Silicon Solution Inc IS34MW01G164-BLI	1.95 V	1.7 V	Parallel	85 °C	-40 °C	1 Mbit	45 ns	45 ns	63-VFBGA	63-VFBGA (9x11)	45 ns	FLASH	64 M	FLASH - NAND (SLC)	Surface Mount	Non-Volatile

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	440	$ 3.21

General part information

FLASH - NAND (SLC) Memory IC 1Gbit Parallel 45 ns 63-VFBGA (9x11)
