S2AF1C-P12MFD0-550S

Active

ODU

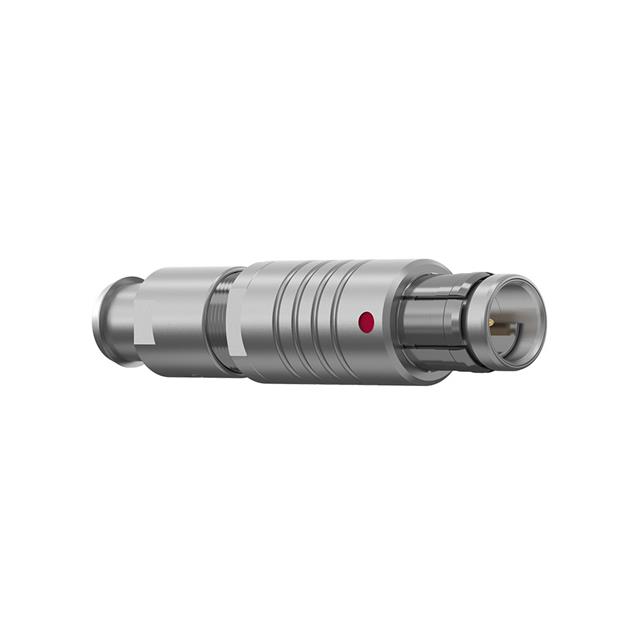

ODU MINI-SNAP PLUG,SZ.1.5,SER.F,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

S2AF1C-P12MFD0-550S

Active

ODU

ODU MINI-SNAP PLUG,SZ.1.5,SER.F,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S2AF1C-P12MFD0-550S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max]	5.5 mm
Cable Opening [Max] [custom]	0.217 in
Cable Opening [Min]	5 mm
Cable Opening [Min] [custom]	0.197 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1.5
Shielding	Unshielded
Voltage Rating	400 V

S2AF1C-P Series

Part	Current Rating (Amps)	Ingress Protection	Insert Material	Orientation	Shell Material	Contact Finish - Mating	Primary Material	Voltage Rating	Backshell Material, Plating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Shielding	Mounting Type	Features	Color	Applications	Number of Positions	Connector Type	Material Flammability Rating	Fastening Type	Shell Size - Insert	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max]	Cable Opening [Min]
ODU S2AF1C-P19MCC0-450S	4 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	333 V	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	19	Male Pins Plug	UL94 V-0	Push-Pull	1.5	4.5 mm	0.157 in	0.177 in	4 mm
ODU S2AF1C-P12MFG0-300S	7.5 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	300 VDC	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	12	Male Pins Plug	UL94 V-0	Push-Pull	1.5					0.118 in	0.098 in	3 mm	2.5 mm
ODU S2AF1C-P10MFG0-350S	7.5 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	300 VDC	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	10	Male Pins Plug	UL94 V-0	Push-Pull	1.5					0.138 in	0.118 in		3 mm	3.5 mm
ODU S2AF1C-P12MFD0-550S	6 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	400 V	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	12	Male Pins Plug	UL94 V-0	Push-Pull	1.5		0.197 in	0.217 in							5.5 mm	5 mm
ODU S2AF1C-P10MFG0-500S	7.5 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	300 VDC	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	10	Male Pins Plug	UL94 V-0	Push-Pull	1.5					0.197 in	0.177 in	5 mm	4.5 mm
ODU S2AF1C-P19MCC0-300S	4 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	333 V	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	19	Male Pins Plug	UL94 V-0	Push-Pull	1.5					0.118 in	0.098 in	3 mm	2.5 mm
ODU S2AF1C-P12MFG0-400S	7.5 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	300 VDC	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	12	Male Pins Plug	UL94 V-0	Push-Pull	1.5					0.157 in	0.138 in		3.5 mm	4 mm
ODU S2AF1C-P12MFG0-700S	7.5 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	300 VDC	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	12	Male Pins Plug	UL94 V-0	Push-Pull	1.5	7 mm	0.256 in	0.276 in	6.5 mm
ODU S2AF1C-P19MCC0-400S	4 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	333 V	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	19	Male Pins Plug	UL94 V-0	Push-Pull	1.5					0.157 in	0.138 in		3.5 mm	4 mm
ODU S2AF1C-P12MFG0-500S	7.5 A	IP50	Polyetheretherketone (PEEK)	1	Brass	Gold	Metal	300 VDC	Brass Chrome over Nickel	Brass	-40 °C	120 °C	Chrome over Nickel	Unshielded	Free Hanging (In-Line)	Backshell Strain Relief	Silver	Industrial Medical Military Testing Equipment & Measurement	12	Male Pins Plug	UL94 V-0	Push-Pull	1.5					0.197 in	0.177 in	5 mm	4.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 103.71

Description

General part information

S2AF1C-P Series

12 Position Circular Connector Plug, Male Pins Solder Cup
