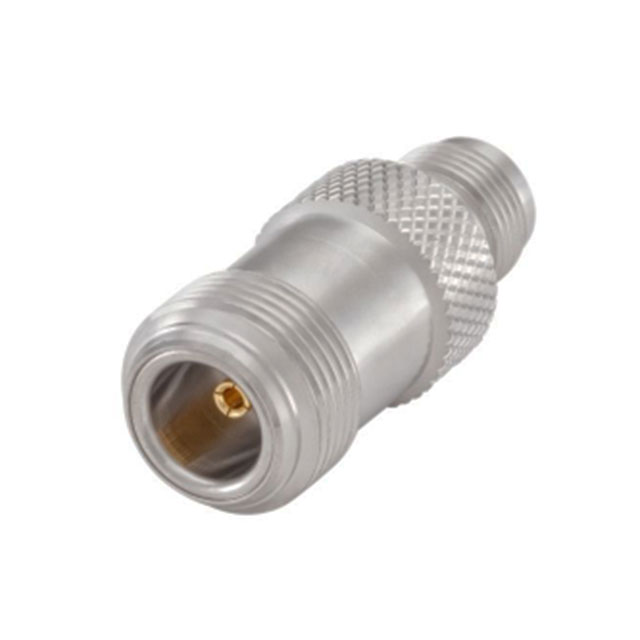

53K156-K00N5

Active

Rosenberger

RF CONNECTOR ADAPTER, N-TNC, JACK-JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF CONNECTOR ADAPTER, N-TNC, JACK-JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	53K156-K00N5

Adapter Series	N to TNC
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	N Jack, Female Socket
Convert To (Adapter End)	Female Socket, TNC Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Plating	Center Contact Material	Frequency - Max [Max]	Mating Cycles	Convert To (Adapter End)	Style	Insertion Loss	Convert From (Adapter End)	Center Gender	Dielectric Material	Adapter Series	Impedance	Adapter Type	Conversion Type	Body Finish	Mounting Type	Body Material	Operating Temperature [Max]	Operating Temperature [Min]
Rosenberger 53K156-K00N5	Gold	Beryllium Copper	10 GHz	500	Female Socket TNC Jack	Straight	0.05 dB	Female Socket N Jack	Female to Female	Polytetrafluoroethylene (PTFE)	N to TNC	50 Ohms	Jack to Jack	Between Series	White Bronze	Free Hanging (In-Line)	Brass	155 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Jack, Female Socket To TNC Jack, Female Socket 50 Ohms
