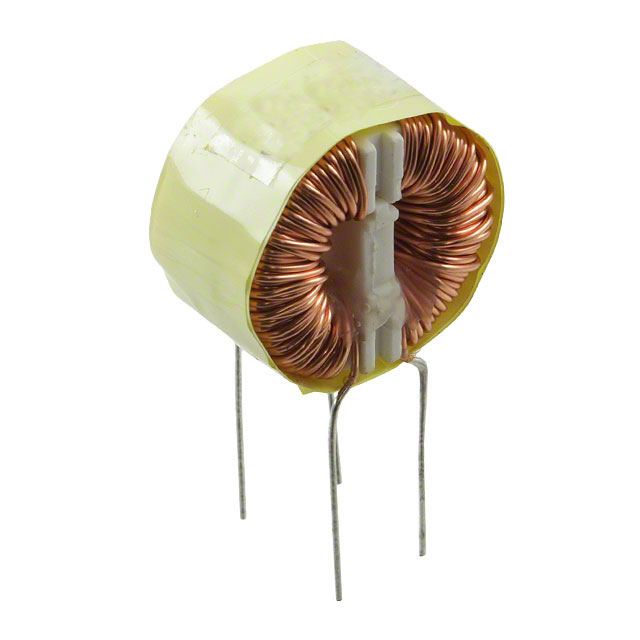

7115-RC
ActiveBourns Inc.
CMC 4.25MH 2A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7115-RC
ActiveBourns Inc.
CMC 4.25MH 2A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7115-RC |
|---|---|
| Current Rating (Max) [Max] | 2 A |
| DC Resistance (DCR) (Max) [Max] | 110 mOhm |
| Height (Max) | 22.86 mm |
| Height (Max) [Max] | 0.9 in |
| Inductance @ Frequency | 4.25 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | No Base, Vertical, 4 PC Pin |
| Size / Dimension [diameter] | 0.9 in |
| Size / Dimension [diameter] | 22.86 mm |
| Size / Dimension [y] | 0.65 in |
| Size / Dimension [y] | 16.51 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 216 | $ 2.84 | |
Description
General part information
7115 Series
4.25 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2A DCR 110mOhm
