QDE-850DRA

Active

BANNER ENGINEERING

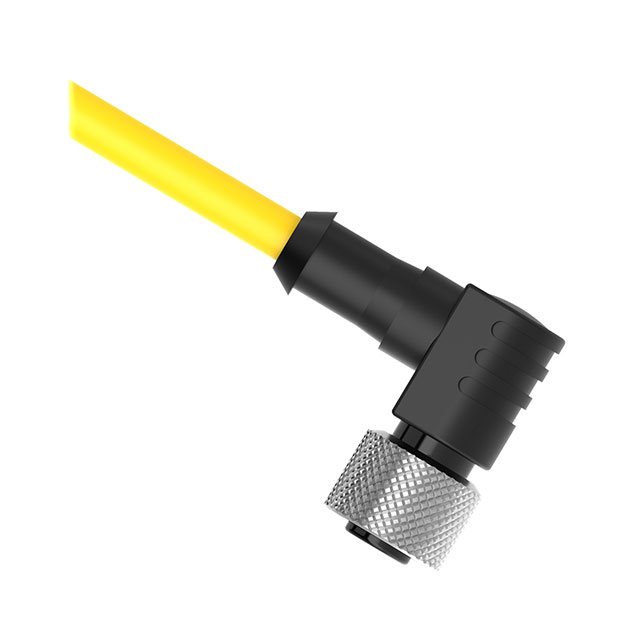

CORDSET A-CODE M12 SINGLE ENDED; 8-PIN RIGHT ANGLE FEMALE CONNECTOR; 15.00 M (49.20 FT) IN LENGTH; YELLOW PVC JACKET, NICKEL PLATED BRASS NUT |BANNER ENGINEERING QDE-850DRA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QDE-850DRA

Active

BANNER ENGINEERING

CORDSET A-CODE M12 SINGLE ENDED; 8-PIN RIGHT ANGLE FEMALE CONNECTOR; 15.00 M (49.20 FT) IN LENGTH; YELLOW PVC JACKET, NICKEL PLATED BRASS NUT |BANNER ENGINEERING QDE-850DRA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QDE-850DRA

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	8 positions
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	15.24 m
Length	50 ft
Shielding	Unshielded
Usage	Industrial Environments

QDE Series

Part	Ingress Protection	1st Connector Orientation [custom]	2nd Connector Type	Cable Type	1st Connector Gender	Length [x]	Length [x]	1st Connector Number of Positions Loaded	Cable Material	Shielding	1st Connector Shell Size - Insert	1st Connector Number of Positions	1st Connector Mounting Type	Usage	Color	1st Connector Type	Assembly Configuration	Length	Length	1st Connector Number of Positions Loaded	1st Connector Number of Positions [custom]
BANNER ENGINEERING QDE-8100D	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets	30.5 m	100 ft	All	Polyvinyl Chloride (PVC)	Unshielded	M12	8 positions	Free Hanging (In-Line)	Industrial Environments	Yellow	Plug	Standard
BANNER ENGINEERING QDE-550D	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets			All	Polyvinyl Chloride (PVC)	Unshielded	M12	5	Free Hanging (In-Line)	Industrial Environments	Yellow	Plug	Standard	15.24 m	50 ft
BANNER ENGINEERING QDE-850DB	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets			All	Polyvinyl Chloride (PVC)	Unshielded	M12	8 positions	Free Hanging (In-Line)	Industrial Environments	Black	Plug	Standard	15.24 m	50 ft
BANNER ENGINEERING QDE-8100DRA	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets	30.5 m	100 ft	All	Polyvinyl Chloride (PVC)	Unshielded	M12	8 positions	Free Hanging (In-Line)	Industrial Environments	Yellow	Plug Right Angle	Standard
BANNER ENGINEERING QDE-875D	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets			All	Polyvinyl Chloride (PVC)	Unshielded	M12	8 positions	Free Hanging (In-Line)	Industrial Environments	Yellow	Plug	Standard	22.9 m	22.86 m
BANNER ENGINEERING QDE-850DRA	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets			All	Polyvinyl Chloride (PVC)	Unshielded	M12	8 positions	Free Hanging (In-Line)	Industrial Environments	Yellow	Plug Right Angle	Standard	15.24 m	50 ft
BANNER ENGINEERING QDE-515D	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets	4.57 m	15 ft	All	Polyvinyl Chloride (PVC)	Unshielded	M12	5	Free Hanging (In-Line)	Industrial Environments	Yellow	Plug	Standard
BANNER ENGINEERING QDE-1275E	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets				Polyvinyl Chloride (PVC)	Unshielded	M12		Free Hanging (In-Line)	Industrial Environments	Yellow	Plug	Standard	22.9 m	22.86 m	11	12
BANNER ENGINEERING QDE-525D	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets			All	Polyvinyl Chloride (PVC)	Unshielded	M12	5	Free Hanging (In-Line)	Industrial Environments	Yellow	Plug	Standard	7.62 m	25 ft
BANNER ENGINEERING QDE-1250E	IP67 - Dust Tight Waterproof	Keyed	Wire Leads	Round	Female Sockets				Polyvinyl Chloride (PVC)	Unshielded	M12		Free Hanging (In-Line)	Industrial Environments	Yellow	Plug	Standard	15.24 m	50 ft	11	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 68.00
Newark	Each	1	$ 70.00

Description

General part information

QDE Series

Circular Cable Assembly Unshielded 50.0' (15.24m)

Documents

Technical documentation and resources
