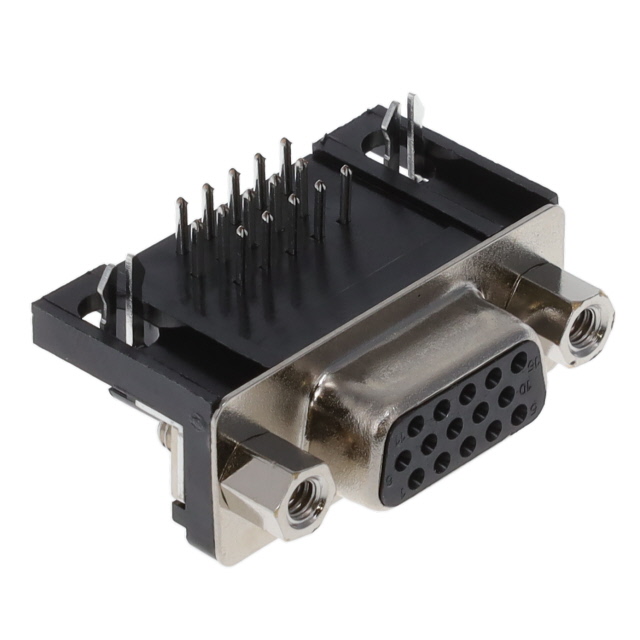

K66X-E15S-NJ30

Active

Kycon, Inc.

CONN D-SUB HD RCPT 15P R/A SLDR

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN D-SUB HD RCPT 15P R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	K66X-E15S-NJ30

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	1.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder
Voltage Rating	29 VAC

CONN D-SUB HD RCPT 15P R/A SLDR

Part	Color	Contact Type	Dielectric Material	Material Flammability Rating	Backset Spacing	Backset Spacing	Number of Positions	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Connector Style	Contact Finish	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Connector Type	Flange Feature	Shell Material, Finish	Number of Rows	Contact Material
Kycon, Inc. K66X-E15S-NJ30	Black	Signal	Polybutylene Terephthalate (PBT), Glass Filled	UL94 V-0	8.89 mm	0.35 in	15	Solder	75 ░C	-55 °C	Through Hole, Right Angle	D-Sub, High Density	Gold	29 VAC	DE, E	1	High Density	0.76 Ám	30 Áin	1.5 A	Receptacle, Female Sockets	Female Screwlock (4-40), Mating Side	Nickel Plated, Steel	3	Phosphor Bronze
