AONX38168

Active

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 25V 25A/62A 8DFN

Search across all available documentation for this part.

Active

Alpha & Omega Semiconductor Inc.

MOSFET 2N-CH 25V 25A/62A 8DFN

Technical Specifications

Parameters and characteristics for this part

Specification	AONX38168

Configuration	2 N-Channel (Dual) Asymmetrical
Current - Continuous Drain (Id) @ 25°C	25 A, 50 A, 62 A, 85 A
Drain to Source Voltage (Vdss)	25 V
Gate Charge (Qg) (Max) @ Vgs	24 nC, 85 nC
Input Capacitance (Ciss) (Max) @ Vds	4520 pF, 1150 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

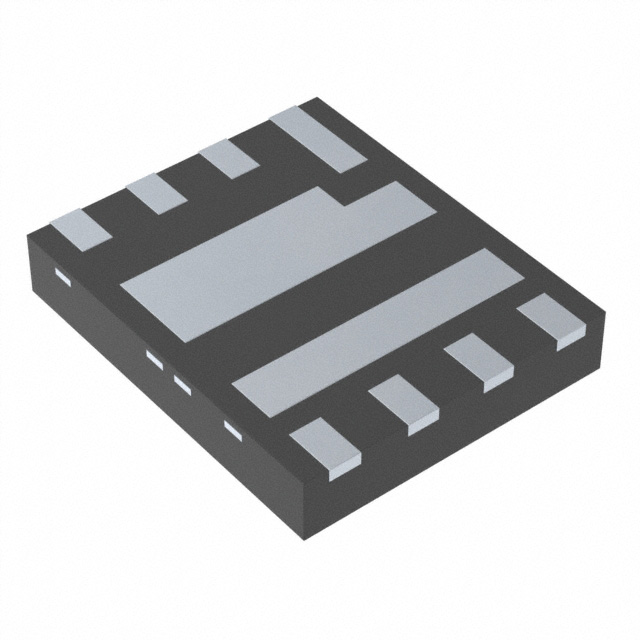

Package / Case	8-VDFN Exposed Pad
Power - Max	69 W, 3.2 W, 20 W, 3.1 W
Rds On (Max) @ Id, Vgs	0.8 mOhm, 3.3 mOhm
Supplier Device Package	8-DFN (5x6)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.9 V, 1.8 V

Part	Configuration	Current - Continuous Drain (Id) @ 25°C	Technology	Package / Case	Drain to Source Voltage (Vdss)	Power - Max	Vgs(th) (Max) @ Id	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Mounting Type	Gate Charge (Qg) (Max) @ Vgs
Alpha & Omega Semiconductor Inc. AONX38168	2 N-Channel (Dual) Asymmetrical	25 A 50 A 62 A 85 A	MOSFET (Metal Oxide)	8-VDFN Exposed Pad	25 V	3.1 W 3.2 W 20 W 69 W	1.8 V 1.9 V	8-DFN (5x6)	-55 °C	150 °C	0.8 mOhm 3.3 mOhm	1150 pF 4520 pF	Surface Mount	24 nC 85 nC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 25V 25A (Ta), 62A (Tc), 50A (Ta), 85A (Tc) 3.1W (Ta), 20W (Tc), 3.2W (Ta), 69W (Tc) Surface Mount 8-DFN (5x6)
