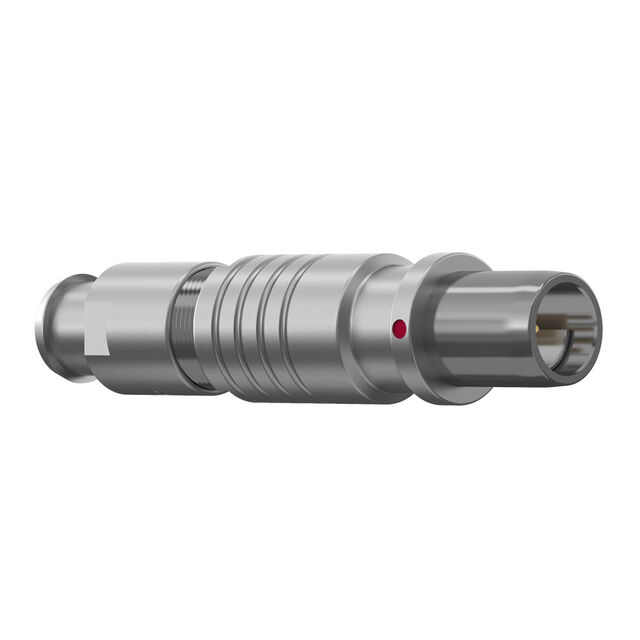

A61F1C-P07MFG0-700S

Active

ODU

ODU MINI-SNAP BREAK-AWAY PLUG, S

Search across all available documentation for this part.

Active

ODU

ODU MINI-SNAP BREAK-AWAY PLUG, S

Technical Specifications

Parameters and characteristics for this part

Specification	A61F1C-P07MFG0-700S

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [Max] [custom]	0.276 in
Cable Opening [Max] [custom]	7 mm
Cable Opening [Min] [custom]	6.5 mm
Cable Opening [Min] [custom]	0.256 in
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Strain Relief, Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1
Shielding	Unshielded
Voltage Rating	333 V

ODU MINI-SNAP BREAK-AWAY PLUG, S

Part	Contact Material	Orientation	Contact Finish - Mating	Primary Material	Mounting Type	Insert Material	Shell Size - Insert	Connector Type	Applications	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Features	Voltage Rating	Material Flammability Rating	Number of Positions	Ingress Protection	Shell Finish	Color	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shielding	Shell Material	Fastening Type
ODU A61F1C-P07MFG0-700S	Brass	1	Gold	Metal	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	1	Male Pins, Plug	Industrial, Medical, Military, Testing Equipment & Measurement	Brass, Chrome over Nickel	6.5 mm	0.276 in	7 mm	0.256 in	Backshell, Strain Relief	333 V	UL94 V-0	7	IP68 - Dust Tight, Waterproof	Chrome over Nickel	Silver	-40 °C	120 °C	7.5 A	Unshielded	Brass	Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.57

General part information

7 Position Circular Connector Plug, Male Pins Solder Cup

Technical documentation and resources

No documents available
