1124-0-05-21-00-00-01-0
ActiveMill-Max Manufacturing Corp.

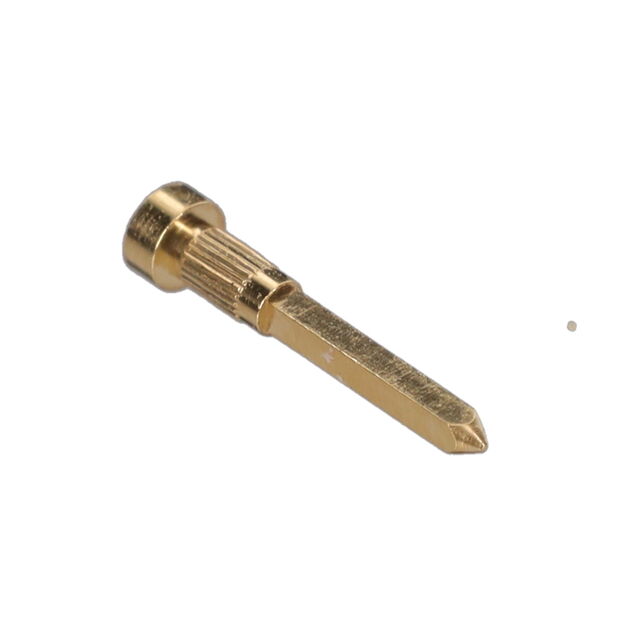

CONN PC PIN SQUARE 0.025 GOLD
Deep-Dive with AI
Search across all available documentation for this part.
1124-0-05-21-00-00-01-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN SQUARE 0.025 GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1124-0-05-21-00-00-01-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.068 in |
| Flange Diameter [diameter] | 1.73 mm |
| Insulation | Non-Insulated |
| Length - Above Flange | 7.37 mm |
| Length - Above Flange | 0.29 in |
| Length - Overall [x] | 0.32 in |
| Length - Overall [x] | 8.13 mm |
| Mounting Hole Diameter [diameter] | 1.09 mm |
| Mounting Hole Diameter [diameter] | 0.043 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange | 0.64 mm |
| Pin Size - Above Flange | 0.025 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Wire Wrap, Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.08 | |
| 10 | $ 0.91 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.67 | |||
| 1000 | $ 0.60 | |||
| 3000 | $ 0.54 | |||
Description
General part information
1124-0 Series
PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Square
