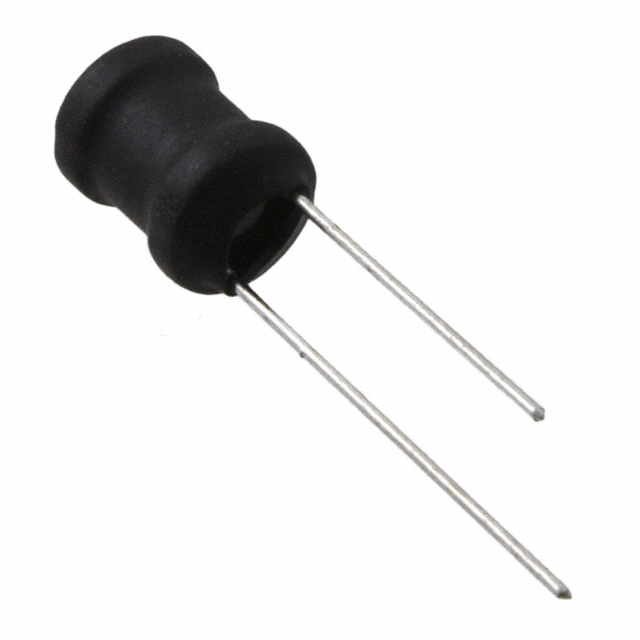

RLB9012-2R2ML

Active

Bourns Inc.

INDUCTOR POWER WIREWOUND 2.2UH 20% 1KHZ 20Q-FACTOR FERRITE 6.5A 0.021OHM DCR RDL BAG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

RLB9012-2R2ML

Active

Bourns Inc.

INDUCTOR POWER WIREWOUND 2.2UH 20% 1KHZ 20Q-FACTOR FERRITE 6.5A 0.021OHM DCR RDL BAG

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RLB9012-2R2ML

Current Rating (Amps)	6.5 A
DC Resistance (DCR) [Max]	21 mOhm
Frequency - Self Resonant	90 MHz
Height - Seated (Max) [Max] [z]	0.48 "
Height - Seated (Max) [Max] [z]	12.2 mm
Inductance	2.2 µH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	7.96 MHz, 20
Shielding	Unshielded
Size / Dimension [diameter]	9 mm
Size / Dimension [diameter]	0.354 in
Tolerance	20 %
Type	Wirewound, Drum Core

RLB9012 Series

Part	Inductance	DC Resistance (DCR) [Max]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Core	Frequency - Self Resonant	Shielding	Current Rating (Amps)	Package / Case	Q @ Freq	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Type	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)
Bourns Inc. RLB9012-330KL	33 µH	90 mOhm	Through Hole	0.48 "	12.2 mm	Ferrite	7.8 MHz	Unshielded	2.05 A	Radial Vertical Cylinder	2.52 MHz 30	9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C
Bourns Inc. RLB9012-123KL	12 mH	34.7 Ohm	Through Hole	0.48 "	12.2 mm	Ferrite	280 kHz	Unshielded	150 mA	Radial Vertical Cylinder	15 79 kHz	9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C
Bourns Inc. RLB9012-820KL	82 µH	230 mOhm	Through Hole	0.48 "	12.2 mm	Ferrite	4.1 MHz	Unshielded	1.3 A	Radial Vertical Cylinder	2.52 MHz 30	9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C
Bourns Inc. RLB9012-1R5ML	1.5 µH		Through Hole	0.48 "	12.2 mm	Ferrite	100 MHz	Unshielded	8.5 A	Radial Vertical Cylinder	7.96 MHz 20	9 mm	0.354 in	20 %	Drum Core Wirewound	-55 °C	125 °C	16 mOhm
Bourns Inc. RLB9012-2R2ML	2.2 µH	21 mOhm	Through Hole	0.48 "	12.2 mm	Ferrite	90 MHz	Unshielded	6.5 A	Radial Vertical Cylinder	7.96 MHz 20	9 mm	0.354 in	20 %	Drum Core Wirewound	-55 °C	125 °C
Bourns Inc. RLB9012-153KL	15 mH	48.9 Ohm	Through Hole	0.48 "	12.2 mm	Ferrite	250 kHz	Unshielded	140 mA	Radial Vertical Cylinder	15 79 kHz	9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C
Bourns Inc. RLB9012-120KL	12 µH		Through Hole	0.48 "	12.2 mm	Ferrite	13 MHz	Unshielded	3.1 A	Radial Vertical Cylinder		9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C	50 mOhm
Bourns Inc. RLB9012-122KL	1.2 mH	3.4 Ohm	Through Hole	0.48 "	12.2 mm	Ferrite	1.2 MHz	Unshielded	480 mA	Radial Vertical Cylinder	15 252 kHz	9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C
Bourns Inc. RLB9012-473KL	47 mH		Through Hole	0.48 "	12.2 mm	Ferrite	120 kHz	Unshielded	80 mA	Radial Vertical Cylinder	15 79 kHz	9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C
Bourns Inc. RLB9012-680KL	68 µH		Through Hole	0.48 "	12.2 mm	Ferrite	4.9 MHz	Unshielded	1.36 A	Radial Vertical Cylinder	2.52 MHz 30	9 mm	0.354 in	10 %	Drum Core Wirewound	-55 °C	125 °C	210 mOhm
