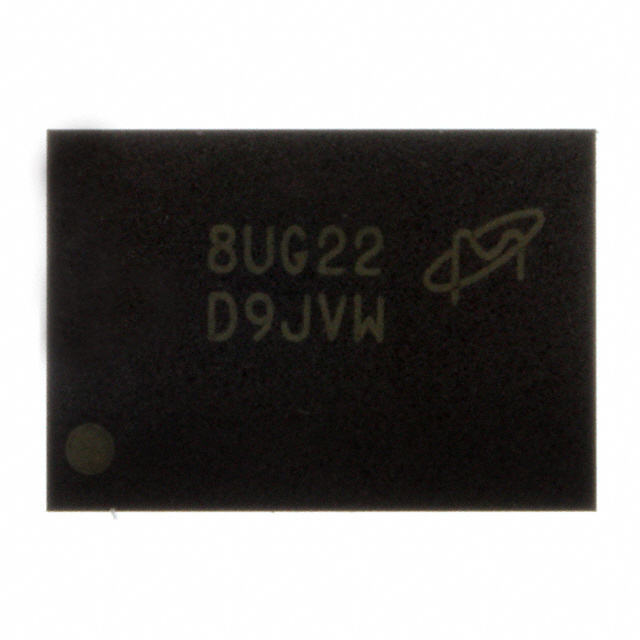

MT47H128M8HQ-3:G TR

Obsolete

Micron Technology Inc.

IC DRAM 1GBIT PARALLEL 60FBGA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MT47H128M8HQ-3:G TR

Obsolete

Micron Technology Inc.

IC DRAM 1GBIT PARALLEL 60FBGA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MT47H128M8HQ-3:G TR

Access Time	450 ps
Clock Frequency	333 MHz
Memory Format	DRAM
Memory Interface	Parallel
Memory Organization	128 M
Memory Size	1 Mbit
Memory Type	Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	60-FBGA
Supplier Device Package	60-FBGA
Supplier Device Package [x]	8
Supplier Device Package [y]	11.5
Technology	SDRAM - DDR2
Voltage - Supply [Max]	1.9 V
Voltage - Supply [Min]	1.7 V
Write Cycle Time - Word, Page	15 ns

MT47H128M8 Series

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Organization	Clock Frequency	Technology	Memory Type	Write Cycle Time - Word, Page	Mounting Type	Package / Case	Memory Format	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Memory Size	Memory Interface	Access Time	Supplier Device Package [y]	Supplier Device Package [x]	Qualification	Grade
Micron Technology Inc. MT47H128M8SH-25E IT:M TR	1.9 V	1.7 V	128 M	400 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	60-TFBGA	DRAM	95 °C	-40 °C	60-FBGA (8x10)	1 Mbit	Parallel	400 ps
Micron Technology Inc. MT47H128M8BT-37E:A	1.9 V	1.7 V	128 M	267 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	92-TFBGA	DRAM	85 °C	0 °C	92-FBGA (11x19)	1 Mbit	Parallel	400 ps
Micron Technology Inc. MT47H128M8B7-37E L:A TR	1.9 V	1.7 V	128 M	267 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	92-TFBGA	DRAM	85 °C	0 °C	92-FBGA (11x19)	1 Mbit	Parallel	400 ps
Micron Technology Inc. MT47H128M8JN-3 IT:H	1.9 V	1.7 V	128 M	333 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	60-TFBGA	DRAM	95 °C	-40 °C	60-FBGA (8x10)	1 Mbit	Parallel	450 ps
Micron Technology Inc. MT47H128M8HQ-3:G TR	1.9 V	1.7 V	128 M	333 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	60-FBGA	DRAM	85 °C	0 °C	60-FBGA	1 Mbit	Parallel	450 ps	11.5	8
Micron Technology Inc. MT47H128M8SH-25E AIT:M TR	1.9 V	1.7 V	128 M	400 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	60-TFBGA	DRAM	95 °C	-40 °C	60-FBGA (8x10)	1 Mbit	Parallel	400 ps			AEC-Q100	Automotive
Micron Technology Inc. MT47H128M8CF-3 AAT:H	1.9 V	1.7 V	128 M	333 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	60-TFBGA	DRAM	105 °C	-40 °C	60-FBGA (8x10)	1 Mbit	Parallel	450 ps			AEC-Q100	Automotive
Micron Technology Inc. MT47H128M8SH-187E:M TR	1.9 V	1.7 V	128 M	533 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	60-TFBGA	DRAM	85 °C	0 °C	60-FBGA (8x10)	1 Mbit	Parallel	350 ps
Micron Technology Inc. MT47H128M8BT-5E L:A	1.9 V	1.7 V	128 M	200 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	92-TFBGA	DRAM	85 °C	0 °C	92-FBGA (11x19)	1 Mbit	Parallel	600 ps
Micron Technology Inc. MT47H128M8SH-25E AIT:M	1.9 V	1.7 V	128 M	400 MHz	SDRAM - DDR2	Volatile	15 ns	Surface Mount	60-TFBGA	DRAM	95 °C	-40 °C	60-FBGA (8x10)	1 Mbit	Parallel	400 ps			AEC-Q100	Automotive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MT47H128M8 Series

SDRAM - DDR2 Memory IC 1Gbit Parallel 333 MHz 450 ps 60-FBGA (8x11.5)

Documents

Technical documentation and resources
