881606-2

Active

TE Connectivity AMP Connectors

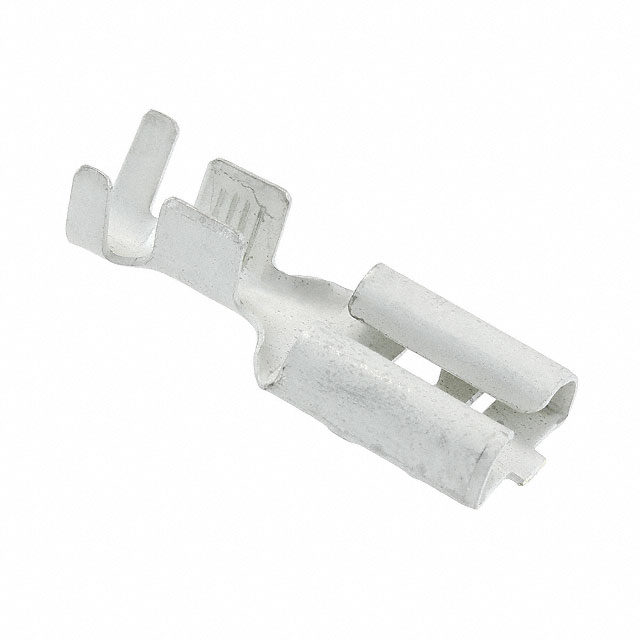

CONN QC RCPT 10-12AWG 0.375

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN QC RCPT 10-12AWG 0.375

Technical Specifications

Parameters and characteristics for this part

Specification	881606-2

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	0.205 in, 5.21 mm
Insulation Diameter [Min] [diameter]	0.157 in, 3.99 mm
Length - Overall [x]	26.4 mm
Length - Overall [x]	1.039 in
Mounting Type	Free Hanging (In-Line)
Tab Length	0.469 in
Tab Length	11.9 mm
Tab Width	0.375 in
Tab Width	9.53 mm
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	12 AWG
Wire Gauge [Min]	10 AWG

CONN QC RCPT 10-12AWG 0.375

Part	Contact Finish	Length - Overall [x]	Length - Overall [x]	Terminal Type	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Insulation	Contact Material	Tab Width	Tab Width	Termination	Tab Length	Tab Length	Gender	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity AMP Connectors 881606-2	Tin	26.4 mm	1.039 in	Standard	Free Hanging (In-Line)	12 AWG	10 AWG	Non-Insulated	Brass	0.375 in	9.53 mm	Crimp	0.469 in	11.9 mm	Female	0.205 in, 5.21 mm	0.157 in, 3.99 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.375" (9.53mm) Quick Connect Female 10-12 AWG Crimp Connector Non-Insulated
