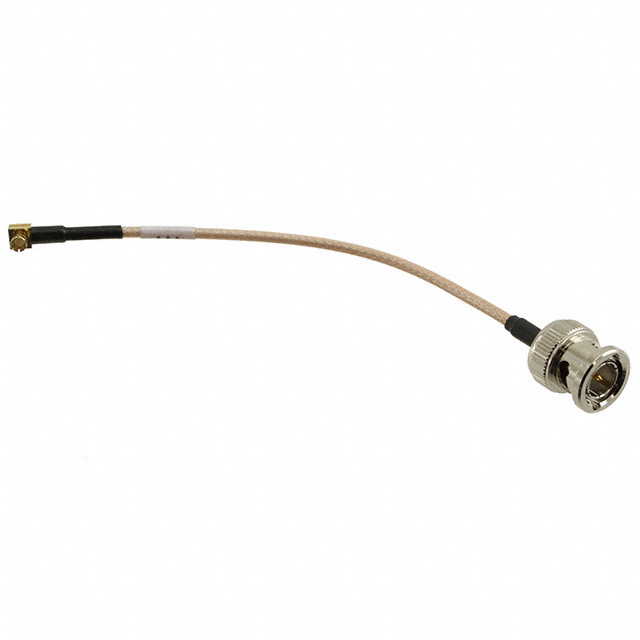

RF179-72RP1-74SP3-0150

Active

Samtec Inc.

CBL ASSY BNC-MCX PLUG-PLG 5.906"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSY BNC-MCX PLUG-PLG 5.906"

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Style	Features	Cable Impedance	2nd Connector	2nd Connector Mounting Type	Cable Type	Length [x]	Length [x]	Color	1st Connector Mounting Type	2nd Contact Gender	1st Contact Gender	Overall Impedance	1st Connector	Connector Impedance	Length	Length	Length
Samtec Inc. RF179-72RP1-74SP3-0150	4 GHz	165 °C	-55 °C	BNC to MCX	Shielded	75 Ohms	MCX Plug Right Angle	Free Hanging (In-Line)	RG-179	150 mm	5.906 "	Amber	Free Hanging (In-Line)	Male	Male	75 Ohms	BNC Plug
Samtec Inc. RF179-72SP1-74SP3-1000	4 GHz	165 °C	-50 °C	BNC to MCX	Shielded	75 Ohms	MCX Plug	Free Hanging (In-Line)	RG-179			Amber	Free Hanging (In-Line)	Male	Male	75 Ohms	BNC Plug	75 Ohms	1 m	3.3 ft	39.4 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial BNC to MCX RG-179 5.906" (150.00mm)
