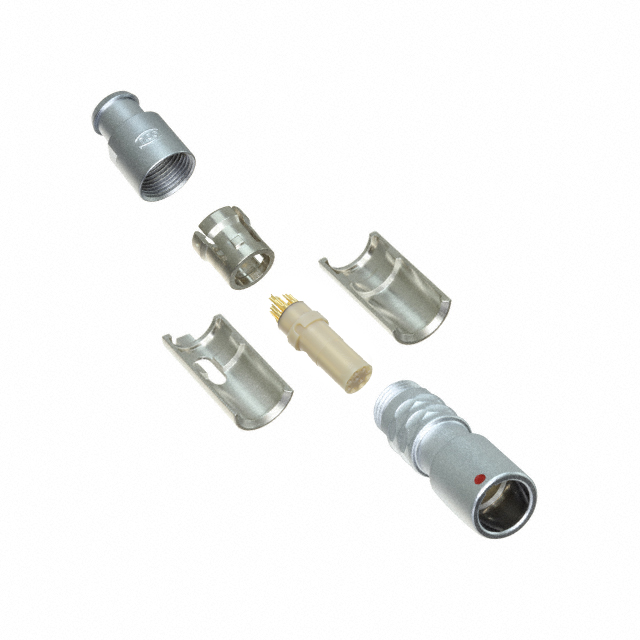

K20L0C-P10LCC9-520S
ActiveODU
CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
K20L0C-P10LCC9-520S
ActiveODU
CONN RCPT FMALE 10P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | K20L0C-P10LCC9-520S |
|---|---|
| Applications | Military, Medical, Industrial, Testing Equipment & Measurement |
| Backshell Material, Plating | Brass, Chrome over Nickel |
| Cable Opening [Max] [custom] | 0.205 in |
| Cable Opening [Max] [custom] | 5.2 mm |
| Cable Opening [Min] [custom] | 0.157 in |
| Cable Opening [Min] [custom] | 4 mm |
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Current Rating (Amps) | 4 A |
| Fastening Type | Push-Pull |
| Features | Strain Relief, Backshell |
| Ingress Protection | IP50 |
| Insert Material | Polyetheretherketone (PEEK) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | 0 |
| Primary Material | Metal |
| Shell Finish | Chrome over Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 0 |
K20L0C-P Series
| Part | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Min] [diameter] | Orientation | Shell Finish | Shielding | Color | Features | Connector Type | Backshell Material, Plating | Current Rating (Amps) | Applications | Shell Material | Primary Material | Insert Material | Ingress Protection | Shell Size - Insert | Fastening Type | Mounting Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Number of Positions | Voltage Rating | Termination | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] | Cable Opening [Min] [custom] | Cable Opening [Max] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.2 mm | 0.126 in | 0.079 in | 2 mm | 0 | Chrome over Nickel | Shielded | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | ||||||||
0 | Chrome over Nickel | Unshielded | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 10 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | 2 | 366 V | Crimp | |||||||||
0 | Chrome over Nickel | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | |||||||||||||
0 | Chrome over Nickel | Unshielded | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | 4 | 300 VDC | Crimp | |||||||||
3.2 mm | 0.126 in | 0.079 in | 2 mm | 0 | Chrome over Nickel | Shielded | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 4 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | 7 | |||||||
0 | Chrome over Nickel | Unshielded | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | 200 V | Crimp | 0.157 in | 0.205 in | 4 mm | 5.2 mm | ||||||
0 | Chrome over Nickel | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | 0.157 in | 0.205 in | 4 mm | 5.2 mm | |||||||||
0 | Chrome over Nickel | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 7.5 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | |||||||||||||
0 | Chrome over Nickel | Unshielded | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 10 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | 2 | 366 V | Crimp | 0.197 in | 0.22 in | 5 mm | 5.6 mm | |||||
0 | Chrome over Nickel | Silver | Backshell Strain Relief | Receptacle Female Sockets | Brass Chrome over Nickel | 4 A | Industrial Medical Military Testing Equipment & Measurement | Brass | Metal | Polyetheretherketone (PEEK) | IP50 | 0 | Push-Pull | Free Hanging (In-Line) | Gold | -40 °C | 120 °C | Brass | 10 | 0.157 in | 0.205 in | 4 mm | 5.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.37 | |
| 10 | $ 27.00 | |||
Description
General part information
K20L0C-P Series
10 Position Circular Connector Receptacle, Female Sockets Solder Cup
