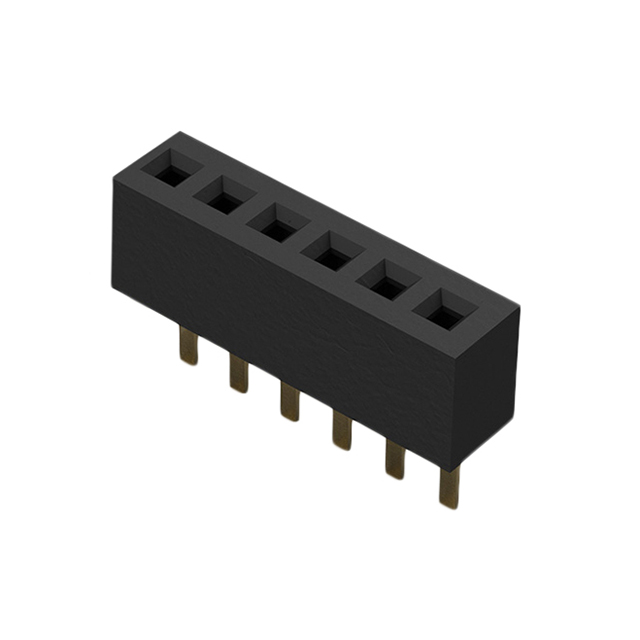

BC065-06-A-L-D

Active

GCT

6POS 1.0MM PITCH SOCKET, SIL, TH

Search across all available documentation for this part.

Active

GCT

6POS 1.0MM PITCH SOCKET, SIL, TH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Receptacle Connector 0.039" (1.00mm) Through Hole Gold

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	BC065-06-A-L-D	BC065 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Post [x]	0.071 "	0.071 "
Contact Length - Post [x]	1.8 mm	1.8 mm
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	1 A	1 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	2.1 mm	2.1 mm
Insulation Height	0.083 "	0.083 "
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	6	2 - 6
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.039 in	0.039 in
Pitch - Mating	1 mm	1 mm
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

6POS 1.0MM PITCH SOCKET, SIL, TH

Part	Contact Type	Connector Type	Contact Finish Thickness - Mating	Mounting Type	Number of Positions Loaded	Number of Rows	Contact Length - Post [x]	Contact Length - Post [x]	Contact Shape	Contact Finish Thickness - Post	Contact Finish - Mating	Number of Positions	Contact Finish - Post	Material Flammability Rating	Insulation Height	Insulation Height	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Voltage Rating	Termination	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Insulation Color
GCT BC065-06-A-L-D	Female Socket	Receptacle	Flash	Through Hole	All	1	0.071 "	1.8 mm	Square	Flash	Gold	6	Gold	UL94 V-0	2.1 mm	0.083 "	Phosphor Bronze	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Push-Pull	250 VDC	Solder	0.039 in	1 mm	1 A	Black
GCT BC065-02-A-L-D	Female Socket	Receptacle	Flash	Through Hole	All	1	0.071 "	1.8 mm	Square	Flash	Gold	2	Gold	UL94 V-0	2.1 mm	0.083 "	Phosphor Bronze	Liquid Crystal Polymer (LCP)	-40 °C	105 ░C	Push-Pull	250 VDC	Solder	0.039 in	1 mm	1 A	Black
