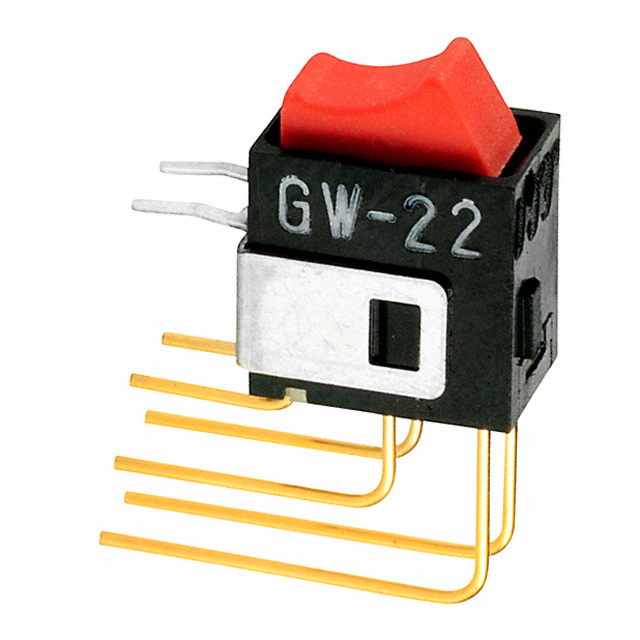

GW22RCV

Active

NKK Switches

SWITCH ROCKER ON NONE ON DPDT PC PINS CURVED ROCKER 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER ON NONE ON DPDT PC PINS CURVED ROCKER 0.1A 28VAC 28VDC 0.4VA 50000CYCLES

Technical Specifications

Parameters and characteristics for this part

Specification	GW22RCV

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	CSA, UL
Circuit	DPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Voltage Rating - DC	Circuit	Actuator Type	Electrical Life	Features	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap	Approval Agency	Termination Style	Switch Function	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
NKK Switches GW22RCH	28 V	DPDT	Concave (Curved)	50000 Cycles	Sealed - Flux Protection	28 V	No Marking	Red	CSA UL	PC Pin	On-On	0.4 VA	-30 ░C	85 °C	Through Hole Right Angle
NKK Switches GW22RCV	28 V	DPDT	Concave (Curved)	50000 Cycles	Sealed - Flux Protection	28 V	No Marking	Red	CSA UL	PC Pin	On-On	0.4 VA	-30 ░C	85 °C	Right Angle Through Hole Vertical
NKK Switches GW22RCP	28 V	DPDT	Concave (Curved)	50000 Cycles	Sealed - Flux Protection	28 V	No Marking	Red	CSA UL	PC Pin	On-On	0.4 VA	-30 ░C	85 °C	Through Hole

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle, Vertical
