CAB.M26.GLA.C52G

Active

LEMO

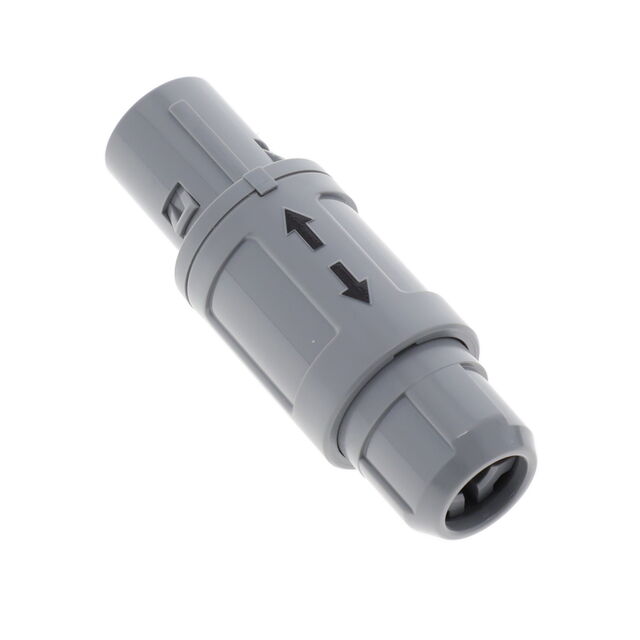

CONN PLUG MALE 26P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CAB.M26.GLA.C52G

Active

LEMO

CONN PLUG MALE 26P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 58.10
		10	$ 53.32
		25	$ 51.27
		50	$ 49.56
		100	$ 46.82

Description

General part information

CAB.M26 Series

26 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CAB.M26.GLA.C52G	CAB.M26 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Polysulfone (PSU)	Polysulfone (PSU)
Cable Opening	-	5.3 - 7.2 mm
Cable Opening	-	0.209 - 0.283 in
Cable Opening [Max] [diameter]	5.2 mm	5.2 mm
Cable Opening [Max] [diameter]	0.205 in	0.205 in
Cable Opening [Min] [diameter]	3.2 mm	3.2 mm
Cable Opening [Min] [diameter]	0.126 in	0.126 in
Color	Gray	Gray, Red
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock, Push-Pull	Detent Lock, Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	26	26
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	B	B
Primary Material	Plastic	Plastic
Shell Material	Polysulfone (PSU)	Polysulfone (PSU)
Shell Size - Insert	M26	M26
Shielding	Unshielded	Unshielded

CAB.M26 Series

CONN PLUG MALE 26P GOLD SLDR CUP

Part	Shell Material	Mounting Type	Contact Finish - Mating	Primary Material	Features	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Insert Material	Fastening Type	Ingress Protection	Number of Positions	Color	Connector Type	Shell Size - Insert	Applications	Current Rating (Amps)	Backshell Material, Plating	Shielding	Cable Opening [custom]	Cable Opening [custom]
LEMO CAB.M26.GLA.C52GZ	Polysulfone (PSU)	Free Hanging (In-Line)	Gold	Plastic	Backshell	B	150 °C	-50 °C	3.2 mm	0.126 in	5.2 mm	0.205 in	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	IP50	26	Gray	Male Pins, Plug	M26	Automotive, Industrial, Medical, Testing Equipment & Measurement	2 A	Polysulfone (PSU)	Unshielded
LEMO CAB.M26.GLA.C72G	Polysulfone (PSU)	Free Hanging (In-Line)	Gold	Plastic	Backshell	B	150 °C	-50 °C					Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	IP50	26	Gray	Male Pins, Plug	M26	Automotive, Industrial, Medical, Testing Equipment & Measurement	2 A	Polysulfone (PSU)	Unshielded	5.3 mm, 7.2 mm	0.209 in, 0.283 in
LEMO CAB.M26.GLA.C72RZ	Polysulfone (PSU)	Free Hanging (In-Line)	Gold	Plastic	Backshell	B	150 °C	-50 °C					Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	IP50	26	Gray, Red	Male Pins, Plug	M26	Automotive, Industrial, Medical, Testing Equipment & Measurement	2 A	Polysulfone (PSU)	Unshielded	5.3 mm, 7.2 mm	0.209 in, 0.283 in
LEMO CAB.M26.GLA.C52G	Polysulfone (PSU)	Free Hanging (In-Line)	Gold	Plastic	Backshell	B	150 °C	-50 °C	3.2 mm	0.126 in	5.2 mm	0.205 in	Polyetheretherketone (PEEK)	Detent Lock, Push-Pull	IP50	26	Gray	Male Pins, Plug	M26	Automotive, Industrial, Medical, Testing Equipment & Measurement	2 A	Polysulfone (PSU)	Unshielded
