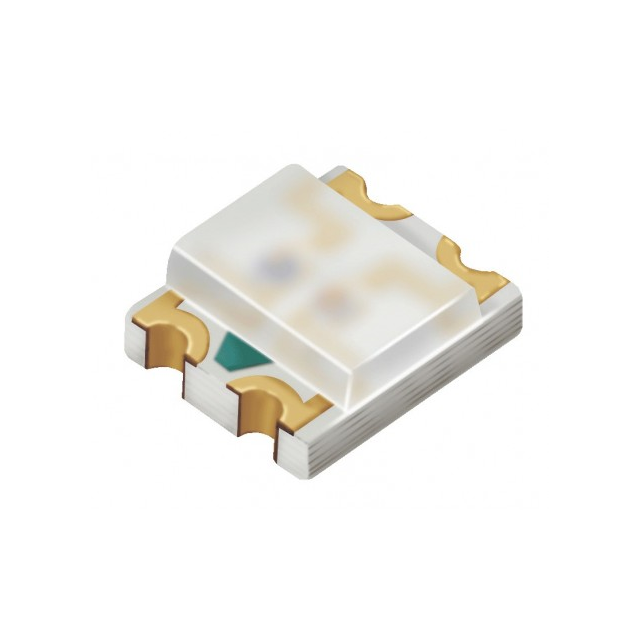

EAST3527RGA0
ActiveEverlight Electronics Co Ltd
LED GREEN/RED CLEAR 4SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAST3527RGA0
ActiveEverlight Electronics Co Ltd
LED GREEN/RED CLEAR 4SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAST3527RGA0 |
|---|---|
| Color | Red, Green |
| Configuration | Independent |
| Current - Test | 20 mA, 20 mA |
| Height (Max) [Max] [z] | 1.1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 2.7 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 50 mcd |
| Millicandela Rating [custom] | 50 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2.7 mm |
| Size / Dimension [y] | 3.2 mm |
| Supplier Device Package | 4-SMD |
| Viewing Angle | 140 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2 V |
| Wavelength - Dominant | 626 nm, 573 nm |
| Wavelength - Peak [custom] | 575 nm |
| Wavelength - Peak [custom] | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.62 | |
| 10 | $ 0.38 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.62 | ||
| 10 | $ 0.38 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 2000 | $ 0.16 | ||
| 4000 | $ 0.15 | |||
| 6000 | $ 0.14 | |||
| 10000 | $ 0.14 | |||
| 14000 | $ 0.13 | |||
| 20000 | $ 0.13 | |||
| 50000 | $ 0.12 | |||
Description
General part information
EAST3527 Series
Green, Red 573nm Green, 626nm Red LED Indication - Discrete 2V Green, 2V Red 4-SMD, No Lead
