0034.5705.22

Active

SCHURTER Inc.

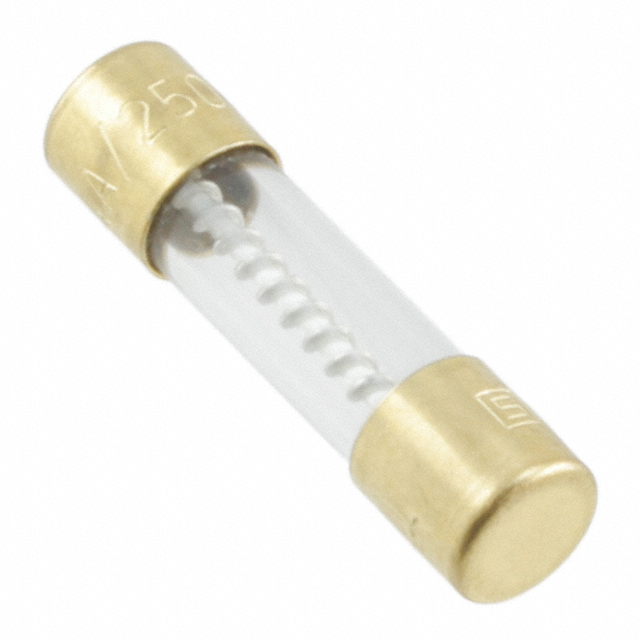

FUSE GLASS 160MA 250VAC 5X20MM

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE GLASS 160MA 250VAC 5X20MM

Technical Specifications

Parameters and characteristics for this part

Specification	0034.5705.22

Breaking Capacity @ Rated Voltage	35 A
Current Rating (Amps)	160 mA
Melting I²t	1
Mounting Type	Requires Holder
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case [x]	5 mm
Package / Case [y]	20 mm
Response Time	Slow Blow
Size / Dimension [diameter]	5.2 mm
Size / Dimension [diameter]	0.205 in
Size / Dimension [x]	0.787 in
Size / Dimension [x]	20 mm
Voltage Rating - AC	250 V

FUSE GLASS 160MA 250VAC 5X20MM

Part	Package / Case [y]	Package / Case [x]	Response Time	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Breaking Capacity @ Rated Voltage	Melting I²t	Voltage Rating - AC	Current Rating (Amps)
SCHURTER Inc. 0034.5705.22	20 mm	5 mm	Slow Blow	Requires Holder	-55 °C	125 °C	0.787 in	5.2 mm	20 mm	0.205 in	35 A	1	250 V	160 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 11.68
	Digi-Reel®	1	$ 11.63
	Tape & Reel (TR)	2000	$ 5.16

General part information

160 mA 250 V AC DC Fuse Cartridge, Glass Requires Holder 5mm x 20mm
