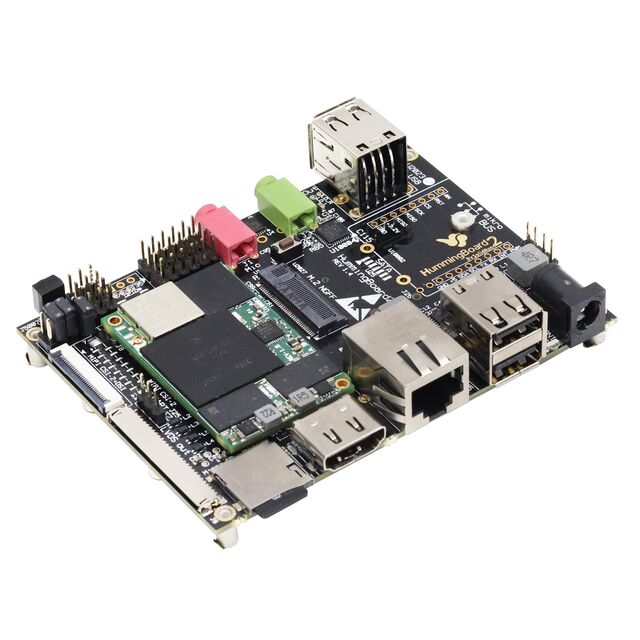

SRMX6SOWT1D512E008E01CH

Active

SolidRun LTD

SBC 1.0GHZ 1 CORE 512MB RAM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SRMX6SOWT1D512E008E01CH

Active

SolidRun LTD

SBC 1.0GHZ 1 CORE 512MB RAM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SRMX6SOWT1D512E008E01CH

Contents	SD Card
Cooling Type	Heat Sink
Core Processor	ARM Cortex-A9
Ethernet	100, 1000, 10
Ethernet	RJ45
Expansion Site/Bus	mPCIe, M.2, mSATA
Form Factor	SBC
Number of Cores	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
RAM Capacity/Installed	512 MB
Size / Dimension [x]	100.07 mm
Size / Dimension [x]	3.94 in
Size / Dimension [y]	2.76 in
Size / Dimension [y]	70.1 mm
Speed	1 GHz
USB	USB 2.0 (2)
Video Outputs	DSI, LVDS, HDMI, MIPI
Watchdog Timer	False

SRMX6SOWT1D512E Series

Part	Form Factor	Core Processor	Speed	Expansion Site/Bus	USB	Number of Cores	Ethernet	Ethernet	RAM Capacity/Installed	Operating Temperature [Max]	Operating Temperature [Min]	Storage Interface	Video Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Cooling Type	Contents
SolidRun LTD SRMX6SOWT1D512E064V20C0	SBC	ARM Cortex-A9	1 GHz	Audio GPIO MIPI CSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	70 °C	0 °C	eMMC microSD	HDMI
SolidRun LTD SRMX6SOWT1D512E016G01CE	SBC	ARM Cortex-A9	1 GHz	GPIO MIPI CSI MIPI DSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	70 °C	0 °C	eMMC microSD	HDMI MIPI-DSI	2.756 in	100 mm	70 mm	3.937 in
SolidRun LTD SRMX6SOWT1D512E008E01CH	SBC	ARM Cortex-A9	1 GHz	M.2 mPCIe mSATA	USB 2.0 (2)	1	10 100 1000	RJ45	512 MB	70 °C	0 °C		DSI HDMI LVDS MIPI	2.76 in	100.07 mm	70.1 mm	3.94 in	Heat Sink	SD Card
SolidRun LTD SRMX6SOWT1D512E032E01IH	SBC	ARM Cortex-A9	1 GHz	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	85 °C	-40 °C	eMMC M.2 microSD	HDMI LVDS MIPI DSI	2.756 in	100 mm	70 mm	3.937 in	Heat Sink
SolidRun LTD SRMX6SOWT1D512E064G01IH	SBC	ARM Cortex-A9	1 GHz	GPIO MIPI CSI MIPI DSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	85 °C	-40 °C	eMMC microSD	HDMI MIPI-DSI	2.756 in	100 mm	70 mm	3.937 in	Heat Sink
SolidRun LTD SRMX6SOWT1D512E016V20A0	SBC	ARM Cortex-A9	1 GHz	Audio GPIO MIPI CSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	85 °C	-40 °C	eMMC microSD	HDMI
SolidRun LTD SRMX6SOWT1D512E008E01CE	SBC	ARM Cortex-A9	1 GHz	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	70 °C	0 °C	eMMC M.2 microSD	HDMI LVDS MIPI DSI	2.756 in	100 mm	70 mm	3.937 in
SolidRun LTD SRMX6SOWT1D512E016G01IH	SBC	ARM Cortex-A9	1 GHz	GPIO MIPI CSI MIPI DSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	85 °C	-40 °C	eMMC microSD	HDMI MIPI-DSI	2.756 in	100 mm	70 mm	3.937 in	Heat Sink
SolidRun LTD SRMX6SOWT1D512E008E01IH	SBC	ARM Cortex-A9	1 GHz	GPIO LVDS M.2 MIPI CSI MIPI DSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	85 °C	-40 °C	eMMC M.2 microSD	HDMI LVDS MIPI DSI	2.756 in	100 mm	70 mm	3.937 in	Heat Sink
SolidRun LTD SRMX6SOWT1D512E000V20I0	SBC	ARM Cortex-A9	1 GHz	Audio GPIO MIPI CSI mPCIe UART	USB 2.0 (4)	1	10 100 1000	RJ45	0 GB 512 MB	85 °C	-40 °C	eMMC microSD	HDMI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 194.00

Description

General part information

SRMX6SOWT1D512E Series

Single Board Computer 1GHz 1 Core 512MB RAM ARM Cortex-A9

Documents

Technical documentation and resources
