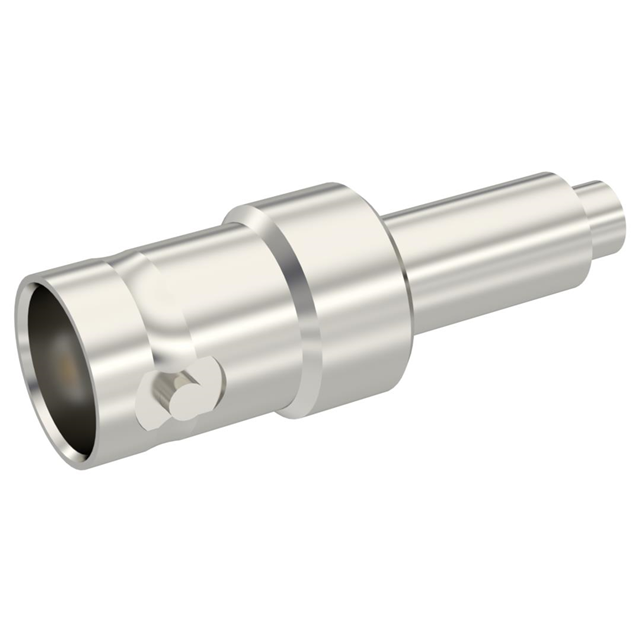

R142217000

Active

Radiall USA, Inc.

BNC / STRAIGHT JACK CRIMP TYPE C

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT JACK CRIMP TYPE C

Technical Specifications

Parameters and characteristics for this part

Specification	R142217000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Body Finish	Connector Style	Body Material	Mounting Type	Dielectric Material	Contact Termination	Impedance	Housing Color	Cable Group	Number of Ports	Shield Termination	Frequency - Max [Max]	Voltage Rating	Center Contact Material	Mating Cycles	Fastening Type
Radiall USA, Inc. R142217000	Gold	-65 ░C	165 °C	Female Socket Jack	Nickel	BNC	Brass	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	Crimp	75 Ohms	Silver	RG-179	1	Crimp	1.5 GHz	335 V	Beryllium Copper	500	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Free Hanging (In-Line) Crimp
