Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AEK-POW-SPSB081 | AEK-POW-SPSB081 Series |
|---|---|---|
| - | - | |
| Embedded | False | False |
| Function | Automotive | Automotive |
| Secondary Attributes | On-Board LEDs | On-Board LEDs |
| Supplied Contents | Board(s) | Board(s) |
| Type | Power Management | Power Management |
| Utilized IC / Part | SPSB081 | SPSB081 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.25 | |
AEK-POW-SPSB081 Series
Automotive power management IC evaluation board with LIN and CAN-FD
| Part | Embedded | Supplied Contents | Secondary Attributes | Type | Utilized IC / Part | Function |
|---|---|---|---|---|---|---|
STMicroelectronics AEK-POW-SPSB081 | ||||||
STMicroelectronics AEK-POW-SPSB081 | Board(s) | On-Board LEDs | Power Management | SPSB081 | Automotive |
Description
General part information
AEK-POW-SPSB081 Series

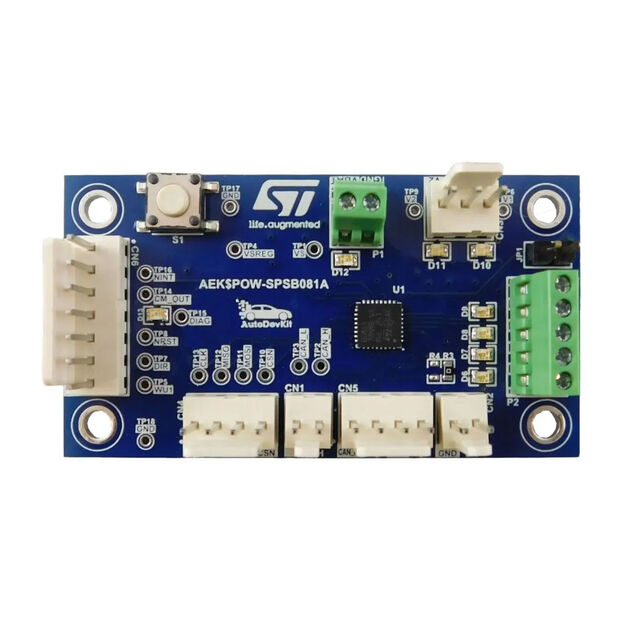

The AEK-POW-SPSB081 is a power management IC evaluation board with enhanced power management functionalities, such as various standby modes to minimize power consumption with programmable local and remote wake-up capability.
The board is based on the SPSB081 power management system IC, which embeds one low-drop voltage regulator (V1) to supply the system microcontroller and another voltage regulator (V2) to be used as a voltage tracker of V1 or to supply external peripheral loads such as sensors.
V1 has a fixed rail of 5 V and features an overvoltage detection and protection solution, while V2 can work in two different ways: as a voltage tracker of V1, or as an independent voltage regulator programmable via SPI with 5 or 3.3 V.
