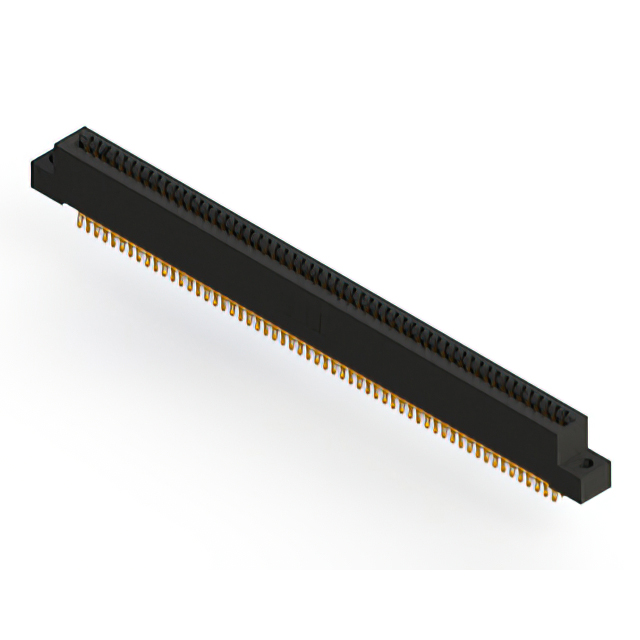

892-114-555-204
ActiveEDAC Inc.
CONN EDGE DUAL FML 114POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-114-555-204
ActiveEDAC Inc.
CONN EDGE DUAL FML 114POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-114-555-204 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 114 |
| Number of Positions/Bay/Row [custom] | 57 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
892-114 Series
| Part | Read Out | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Contact Material | Features | Contact Finish Thickness | Contact Finish Thickness | Gender | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Rows | Termination Rows | Contact Finish | Contact Type | Mounting Type | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Board Edge Straddle Mount | 0.116 in | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Board Edge Straddle Mount | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | |||
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Board Edge Straddle Mount | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Through Hole Right Angle | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Through Hole Right Angle | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Board Edge Straddle Mount | Flush Mount M3 Threaded Insert Top Opening | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | ||
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Board Edge Straddle Mount | 0.128 " | Flush Mount Top Opening Unthreaded | 3.25 mm | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 |
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Board Edge Straddle Mount | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 | |||
EDAC Inc. | Dual | 2.54 mm | 0.1 in | 57 | Copper Alloy | Card Extender | 10 Áin | 0.25 Ám | Female | Polyphenylene Sulfide (PPS) | 125 °C | -40 °C | Black | 2 | 2 | Gold | Cantilever | Board Edge Straddle Mount | 0.156 in | Flush Mount Top Opening Unthreaded | 3.96 mm | Non Specified - Dual Edge | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 114 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 123.40 | |
Description
General part information
892-114 Series
114 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
