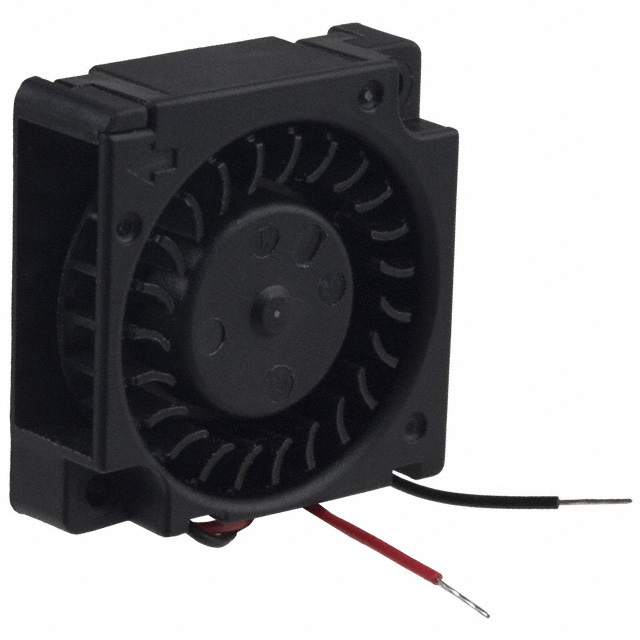

BFB0312HA-A

Obsolete

Delta Electronics

FAN BLOWER 30X10MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN BLOWER 30X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Static Pressure	Static Pressure	Power (Watts)	Weight	Weight	Noise	Width [y]	Material - Frame	Material - Blade	Current Rating (Amps)	Termination	RPM	Lifetime @ Temp.	Fan Type	Approval Agency	Air Flow	Air Flow	Bearing Type	Size / Dimension [x]	Size / Dimension [z]	Voltage Range [Max]	Voltage Range [Min]	Features
Delta Electronics BFB0312HA-A	12 VDC	70 °C	70 °C	-10 °C	-10 °C	0.285 in H2O	71 Pa	720 mW	10.43 g	0.023 lb	29 dB(A)	10 mm	Plastic	Plastic	60 mA	2 Wire Leads	7500 RPM	30000 Hrs	Blower	CE CSA UL VDE	1.5 CFM	0.042 m³/min	Ball	30 mm	30 mm	13.2 VDC	7 V
Delta Electronics BFB0312HA-A116	12 VDC	70 °C	70 °C	-10 °C	-10 °C	0.285 in H2O	71 Pa	720 mW	10.43 g	0.023 lb	29 dB(A)	10 mm	Plastic	Plastic	60 mA	2 Position Rectangular Connector	7500 RPM	30000 Hrs	Blower	CE CSA UL VDE	1.5 CFM	0.042 m³/min	Ball	30 mm	30 mm	13.2 VDC	7 V
Delta Electronics BFB0312LA-C	12 VDC	70 °C	70 °C	-10 °C	-10 °C	0.144 in H2O	35.9 Pa	0.48 W	10.43 g	0.023 lb	24 dB	10 mm	Plastic	Plastic	40 mA	2 Wire Leads	5500 RPM	30000 Hrs	Blower	CE cURus TUV	1.1 CFM	0.031 m³/min	Ball	30 mm	30 mm	13.2 VDC	10.8 VDC
Delta Electronics BFB0312MA-CF00	12 VDC	70 °C	70 °C	-10 °C	-10 °C	0.206 in H2O	51.3 Pa	600 mW	10.43 g	0.023 lb	26 dB	10 mm	Plastic	Plastic	50 mA	3 Wire Leads	6500 RPM	30000 Hrs	Blower	CE cURus TUV	1.2 CFM	0.034 m³/min	Ball	30 mm	30 mm	13.2 VDC	10.8 VDC	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 12VDC Square - 30mm L x 30mm H Ball 1.5 CFM (0.042m³/min) 2 Wire Leads
