KKJ-5-RT

Active

Essentra Access Solutions

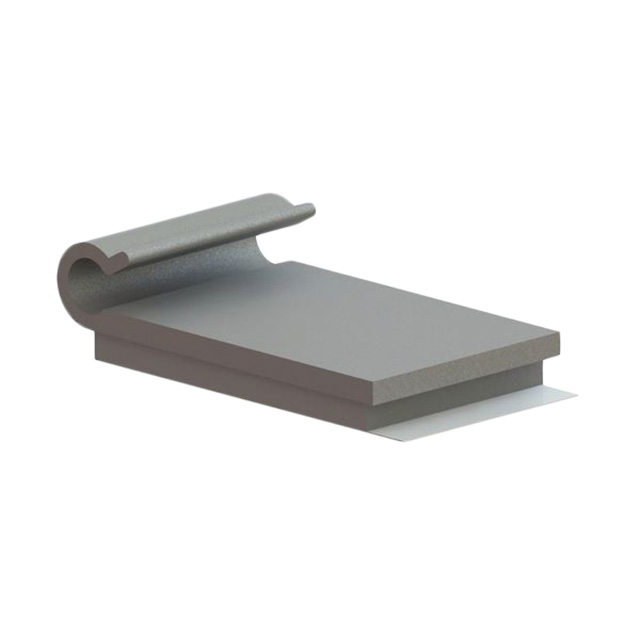

CBL CLIP J-TYPE GRAY ADHESIVE

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP J-TYPE GRAY ADHESIVE

Technical Specifications

Parameters and characteristics for this part

Specification	KKJ-5-RT

Adhesive	Acrylic Based (RMS-15)
Color	Gray
Features	Flame Retardant
Height [z]	11.13 mm
Height [z]	0.438 in
Length [x]	1.219 "
Length [x]	30.96 mm
Material	Polyvinyl Chloride (PVC)
Material Flammability Rating	UL94 V-0
Mounting Type	Adhesive
Type	Clip, J-Type
Width [x]	44.45 mm
Width [x]	1.75 in

Part	Material Flammability Rating	Mounting Type	Type	Height [z]	Height [z]	Adhesive	Length [x]	Length [x]	Color	Features	Width [x]	Width [x]	Material	Length	Length	Width	Opening Size [diameter]	Opening Size
Essentra Access Solutions KKJ-5-RT	UL94 V-0	Adhesive	Clip J-Type	11.13 mm	0.438 in	Acrylic Based (RMS-15)	1.219 "	30.96 mm	Gray	Flame Retardant	44.45 mm	1.75 in	Polyvinyl Chloride (PVC)
Essentra Access Solutions KKJ-6-RT	UL94 V-0	Adhesive	Clip J-Type	13.5 mm	0.531 "	Acrylic Based (RMS-15)			Gray	Flame Retardant	50.8 mm	2 in	Polyvinyl Chloride (PVC)	1.281 "	32.54 mm
Essentra Access Solutions KKJ-4-RT	UL94 V-0	Adhesive	Clip J-Type	10.31 mm	0.406 in	Acrylic Based (RMS-15)			Gray	Flame Retardant		1.5 in	Polyvinyl Chloride (PVC)	0.906 "	23.01 mm	38.1 mm	0.25 in	6.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, J-Type Gray Adhesive 0.313" (7.95mm)

Technical documentation and resources

No documents available
